FECG01.2-22K0-3P400-A-BN-MODB-01V01

Request a quote

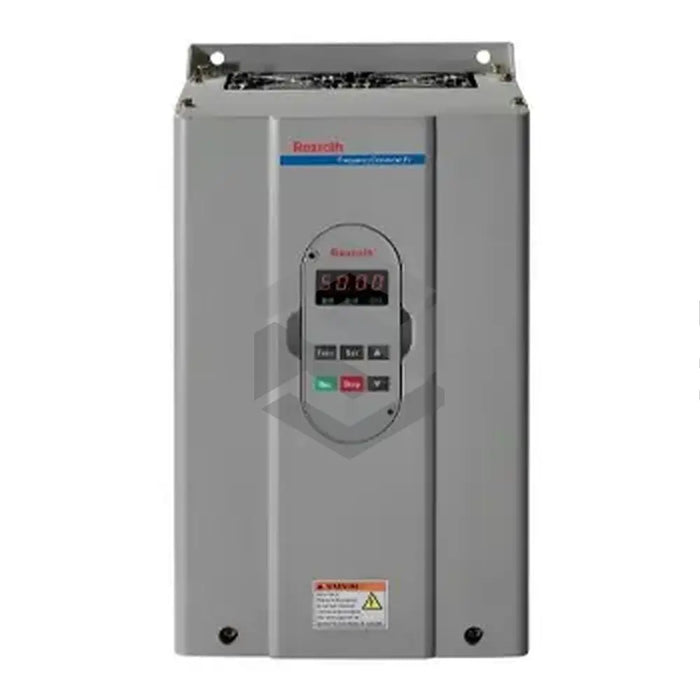

Bosch Rexroth Indramat's FECG01.2-22K0-3P400-A-BN-MODB-01V01 is a robust and high-performing frequency converter. Operating on a 3 x AC 380 - 480 V power supply, with a 50/60 Hz frequency, this converter ensures reliable operation and peak output. With a capability to work under the continuous rated current of 44A, it offers an output frequency range of 0 - 599 Hz and manages a load of 200% for 1 second and 150% for 60 seconds. It has provisions for external brake chopper and brake resistors and can function within -10 to +40 degrees Celsius. Installation must be free from dust, reactive chemicals, and aggressive gases, and within a height of 1000 meters from sea level. The model, enclosed in an IP 20 protected casing, comes in a standard size for easy installation and should be used with Rexroth-approved products and accessories. Servo Supplier can readily deliver this product.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Frequency Converter
  • Model: FECG01.2-22K0-3P400-A-BN-MODB-01V01
  • Power Source: 3 x AC 380 - 480 V
  • Input Voltage Frequency: 50/60 Hz
  • Continuous Rated Current: 44A
  • Output Frequency Range: 0 - 599 Hz
  • Load Capacity: 200% for 1 second and 150% for 60 seconds
  • External Options: Brake chopper and brake resistors
  • Operating Temperature Range: -10 to +40 degree Celsius
  • Permissible Humidity: <90% (without condensation)
  • Installation Location Requirements: Free from dust and reactive chemicals
  • Maximum Installation Height: 1000 meters from sea level
  • Housing Protection: IP 20
  • Size and Design: Standard
  • Controller Type: PID controller
  • Ordering Method: Servo Supplier
  • Installation Requirements: Only by a qualified person.
