HDS03.1-W100N-HS32-01-FW

Request a quote

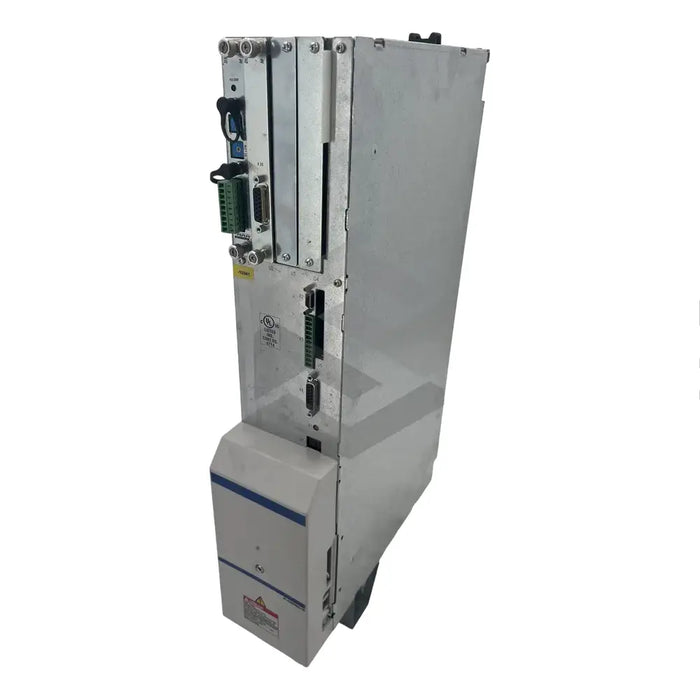

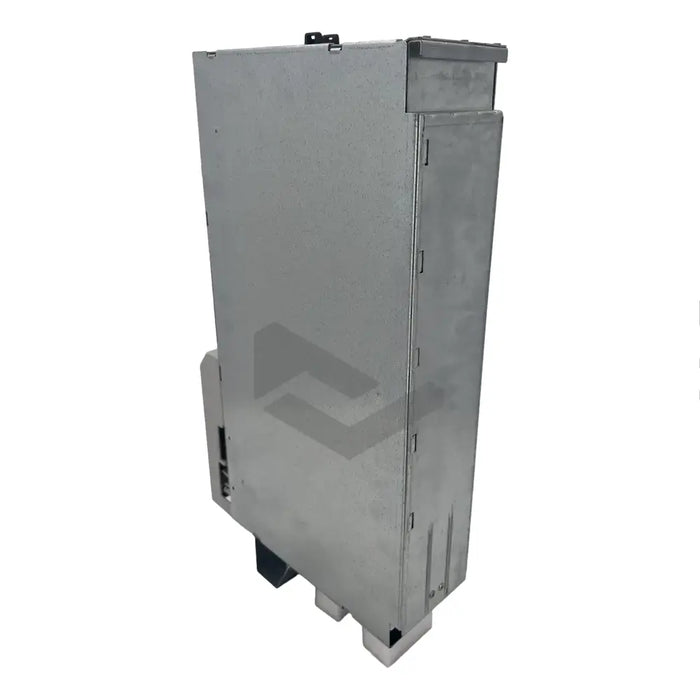

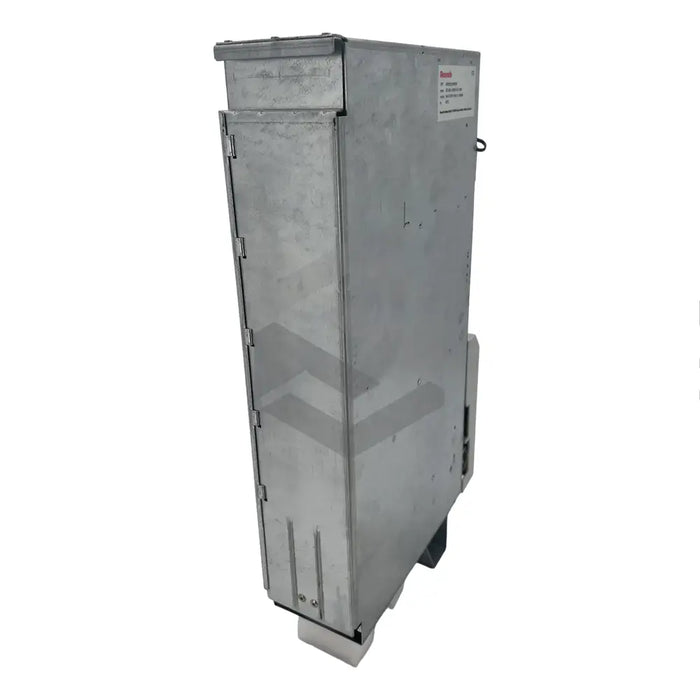

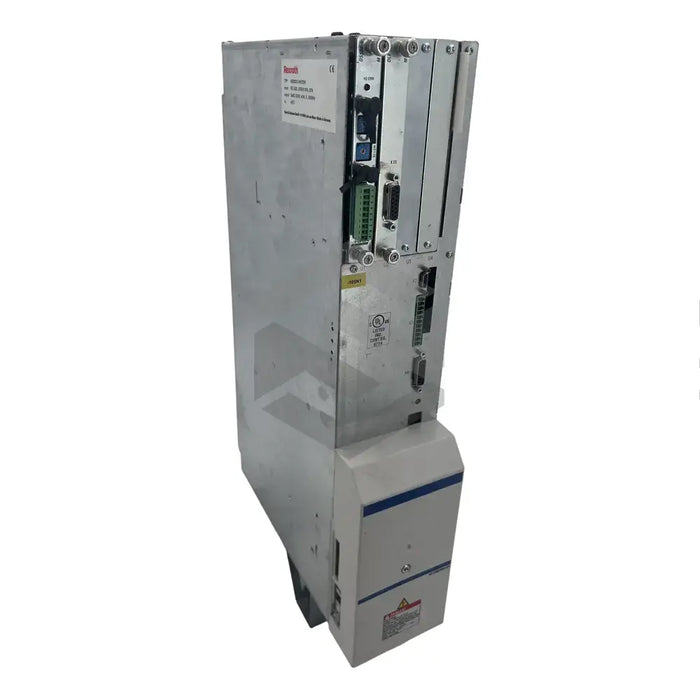

The Bosch Rexroth Indramat HDS03.1-W100N-HS32-01-FW is a top-quality drive control unit that offers excellent speed and position control for industrial servo motors. Originating from the respected HDS series, this model operates with a power loss of 220 W and a current of 75 A. Most effective within a 5°C - 45°C range, performance can still be maintained up to 55°C, albeit with a slight decrease in value. With a weight of 11 kg, the unit is easily movable, and it can provide a peak current of 30 A at 8 Hz frequency. It requires 25 W power for signal processing at 26 V, and its modular design allows for compatibility with various Rexroth motors such as the MHD, MKD, 1MB, and 2AD series. Its configurable design also allows for the addition of plug-in modules for enhanced functionality.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Control Unit
  • Series : HDS
  • Model: HDS03.1-W100N-HS32-01-FW
  • Function: Speed and position control in industrial servo motors
  • Power Loss: 220 W
  • Operating Current: 75 A
  • Optimal Operating Temperature Range: 5 ᵒC to 45 ᵒC
  • Derating Performance Temperature Range: 45 ᵒC to 55 ᵒC
  • Weight: 11 kg
  • Peak Current at 8Hz Frequency: 30 A
  • Power for signal processing: 25 W from a power source at 26 V
  • Compatibility: Can be integrated with MHD, MKD, 1MB, and 2AD series motors
  • Structure: Modular, allows for replacement of HDS units and installation of plug-in modules.
