MDD093C-N-020-N2L-110PA1

Original price $4,788.00 - Original price $4,788.00
Original price
$4,788.00
$4,788.00 - $4,788.00
Current price $4,788.00
Available, Shipping Varies
Request a quote

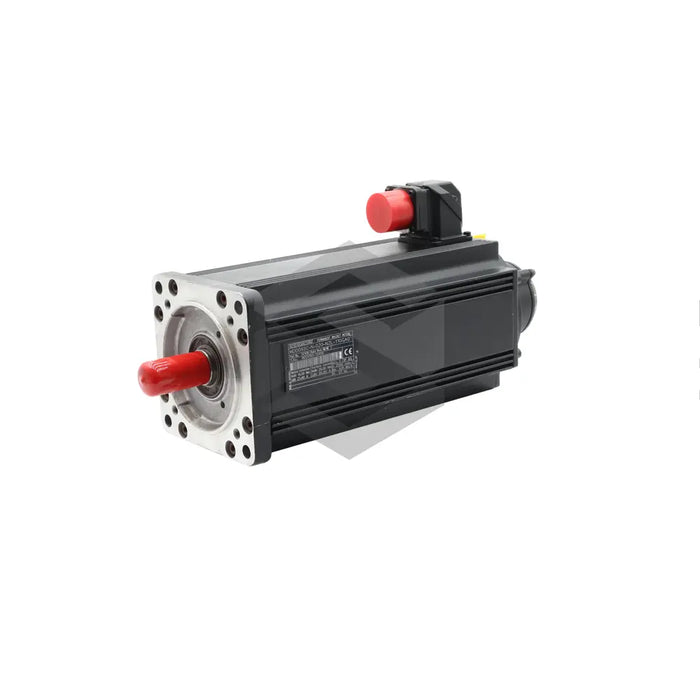

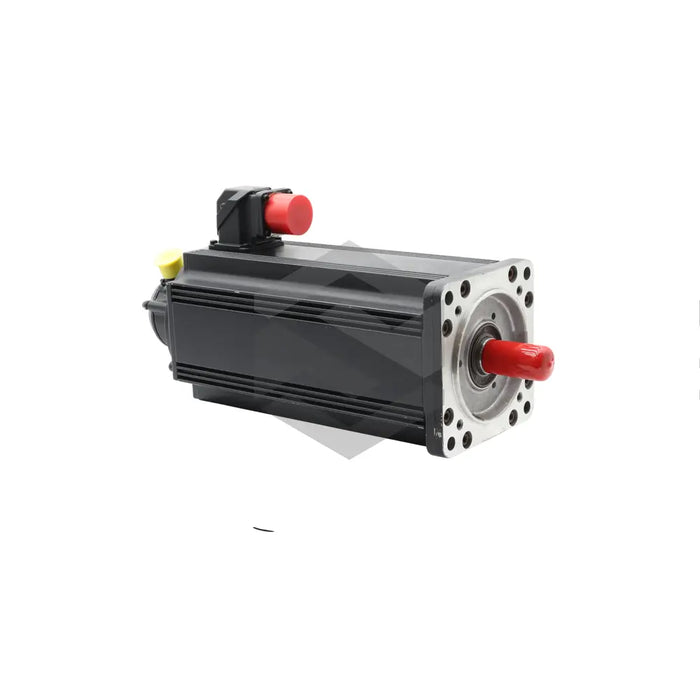

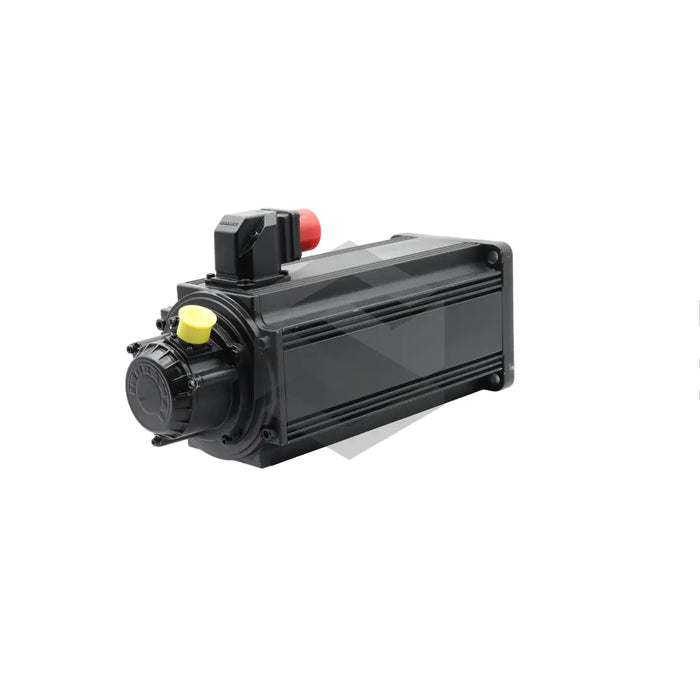

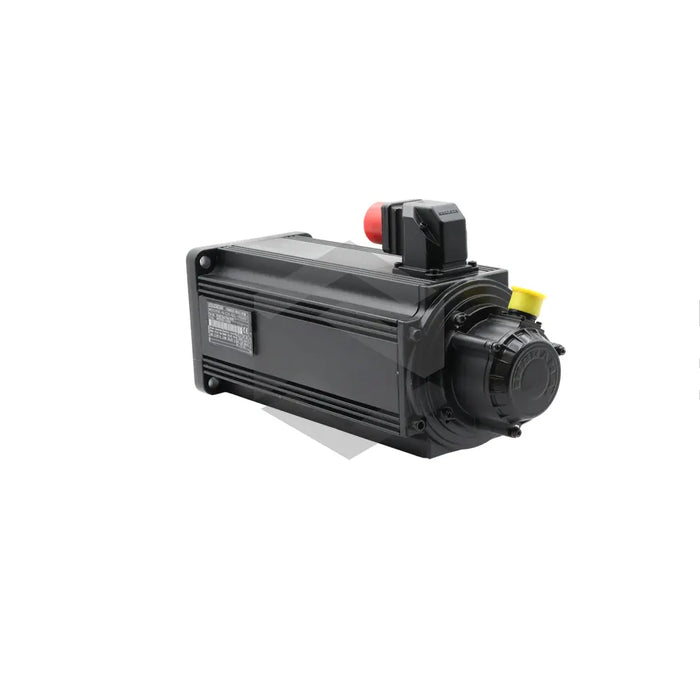

The MDD093C-N-020-N2L-110PA1 is a high-quality servo motor developed by Bosch Rexroth Indramat. This cutting-edge motor is ideal for various industrial applications, such as metal forming, food processing, and paper converting. Its compact design allows for a notable power-to-weight ratio while its electronic commutation supports continuous start-stop operation at high repeat frequencies. This motor is synchronized through sinusoidal current application and high motor feedback resolution. To keep the operational temperature within an acceptable range, it utilizes natural conduction and convection. However, an additional air blower may be necessary for high-frequency, intermittent start-stop operations. Furthermore, its output shaft has a specialized keyway for securing the motor to machines and features grease-lubricated bearings for reducing frictional heat. Operating at a nominal speed of approximately 2000 rpm, it requires a continuous input current of 21 amperes and produces a steady output torque of around 19.5-newton meters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MDD093C-N-020-N2L-110PA1
  • Product Type: Industrial Servo Motor
  • Suitable For: Highly Dynamic Industrial Applications
  • Constructions: Compact
  • Commutation: Electronic
  • Operation: Synchronous
  • Temperature Regulation: Natural Conduction and Convection, Can be supplemented with additional air blower
  • Output Shaft: Designed with special keyway
  • Bearings: Grease-lubricated ball bearings
  • Nominal Speed: 2000 revolutions per minute
  • Input Current: 21 amperes
  • Output Torque: 19.5-newton meters
