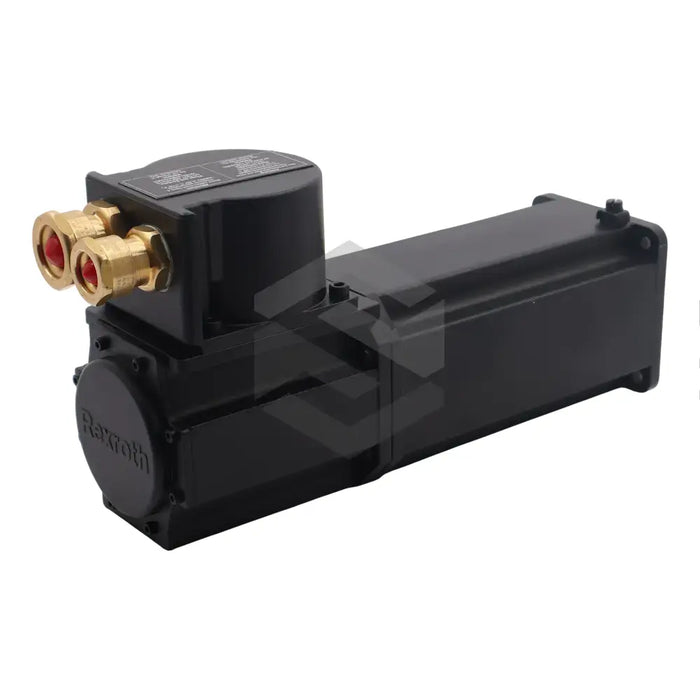

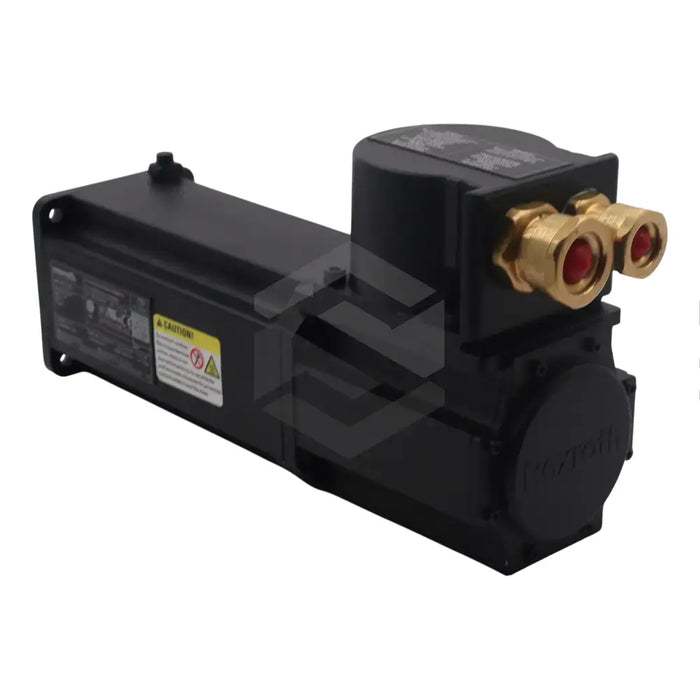

The MKE047B-144-KP0-BENN, a high-performing brushless servo motor, is manufactured by Bosch Rexroth Indramat, a pioneer in creating eco-friendly, efficient industrial parts. The device offers optimal functionality even when exposed to harsh environmental conditions, thanks to its IP 65 class protection that provides safety against dust particles and water jets. It operates best under the skilled supervision of qualified personnel. With a rated current of 22.6 A, this motor can generate a maximum torque of 11.3 Nm. When over temperature reaches 60-K, it maintains continuous torque of 2.7 Nm, whilst consuming a steady current of 5 A. The servo motor operates with three pole pairs, a winding resistance of 1.8 Ohm, and a moment of inertia of 0.00017 kgm3. Integrated with an optical encoder system, it ensures accurate control of speed and position. With a maximum velocity of 7000 RPM, it can work within a permissible temperature range of 0–40°C. Note that this model does not include a holding brake.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MKE047B-144-KP0-BENN
  • Product Type: Brushless Servo Motor
  • Protection Class: IP 65
  • Operating Current: 22.6 A
  • Maximum Torque: 11.3 Nm
  • Continuous Torque at 60-K over temperature: 2.7 Nm
  • Continuous Current at Standstill: 5 A
  • Winding Resistance: 1.8 Ohm
  • Pole Pairs: 3
  • Moment of Inertia: 0.00017 kgm3
  • Maximum Velocity: 7000 rpm
  • Sound Pressure Level: 63.0 (±3) dB
  • Encoder Type: Optical
  • Holding Brake: Not Equipped
  • Permissible Ambient Temperature: 0 – 40 degree Celsius.
