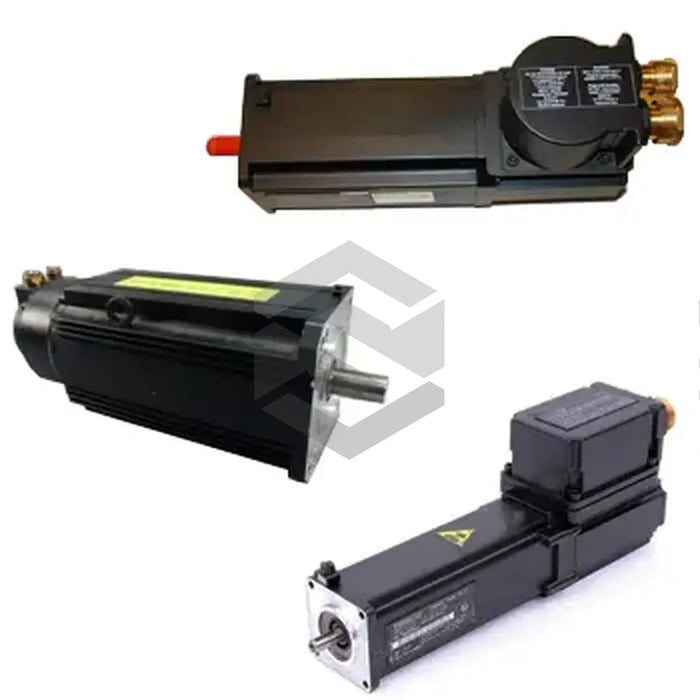

manufacturer image of MKE098B-058-AG0-BENN

MKE098B-058-AG0-BENN

by Bosch Rexroth Indramat
$11,401.15 - $11,401.15
$11,401.15
$11,401.15 - $11,401.15
$11,401.15
Available, Shipping Varies

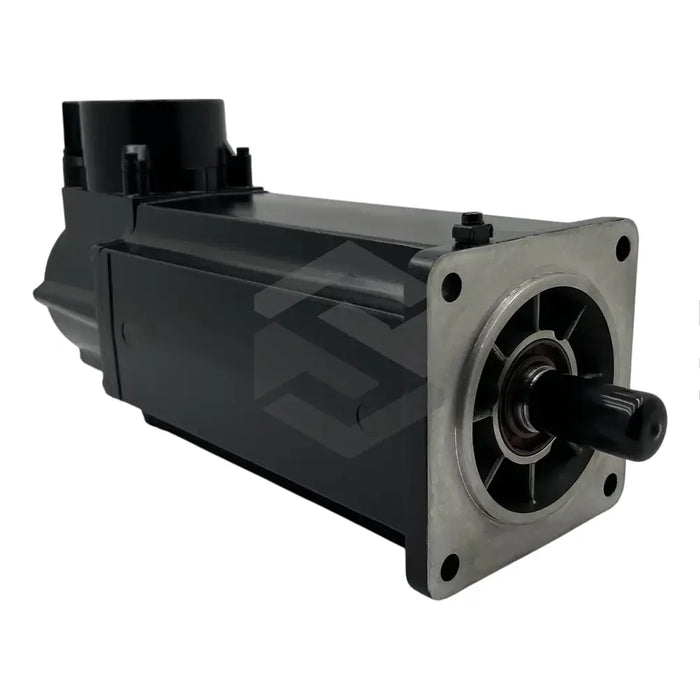

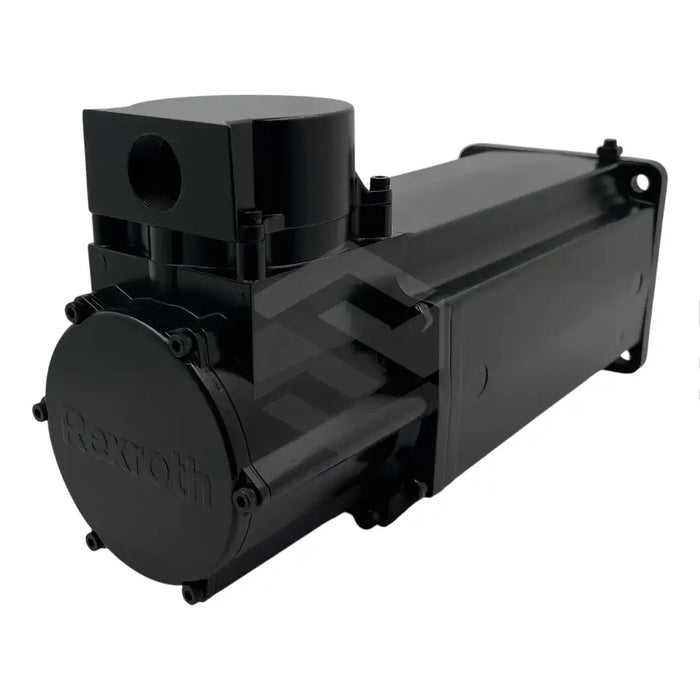

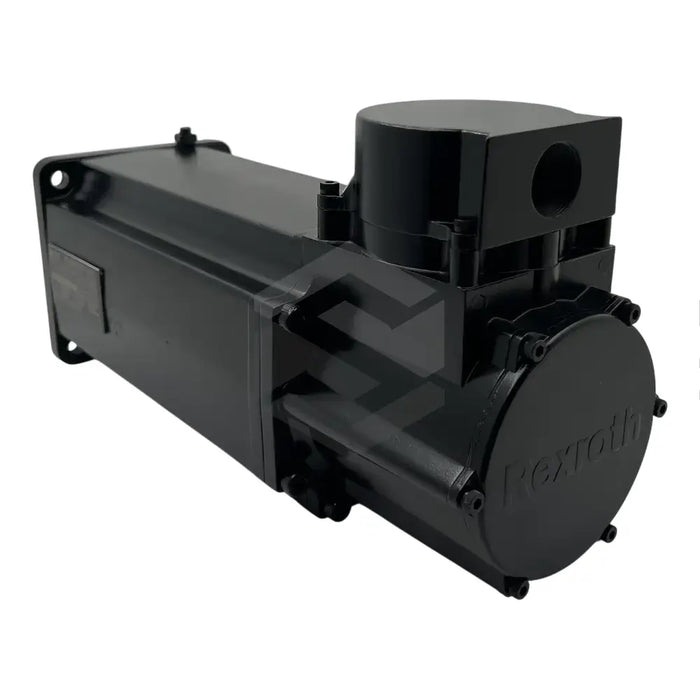

The MKE098B-058-AG0-BENN is a high-performance, permanent magnet motor manufactured by Bosch Rexroth Indramat. It produces high speeds of up to 5,000 RPM and offers a continuous torque rating of 12.0 Nm, peaking at 43.5 Nm. The motor operates at 12.4 A at standstill and manages up to 55.9 A under maximum torque. Weighing 18 kgs, this servomotor features a frame size of 98 and a winding code of 058 and does not have an integrated brake. It stands out with a thermal time constant of 60 minutes, sound pressure level of 61.8 dB(A), and a winding inductivity of 0.740 mH. Its IP65-rated housing ensures full protection, and it is ATEX standard compliant. Fitted with a Singleturn Hiperface optical encoder with 128 increments, the unit includes a terminal box for electrical connections and uses a plain shaft design.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Rexroth Indramat Permanent Magnet Motor
  • Model: MKE098B-058-AG0-BENN
  • Application: General purpose industrial
  • Max Speed: 5000 RPM
  • Continuous Torque Rating: 12.0 Nm
  • Max Torque Rating: 43.5 Nm
  • Continuous Current: 12.4 Amperes at 60K standstill
  • Maximum Current: 55.9 Amperes
  • Weight: 18kgs
  • Pole Pairs: 4
  • Frame Size: 98
  • Frame Length: B
  • Winding Code: 058
  • Holding Brake: None
  • Thermal Time Constant: 60 minutes
  • Sound Pressure Level: 61.8 dB(A)
  • Winding Inductivity: 0.740 mH
  • Voltage Constant at 20C: 70 V/min-1
  • Torque Constant: 1.09 Nm/A
  • Winding Resistance: 5.80 ohms at 20C
  • Rotor Inertia: 0.00430 kgm2
  • Housing Protection: IP65 rated according to IEC 60592
  • Insulation Class: 155 according to DIN EN 60034-1
  • Encoder Type: Optical with singleturn Hiperface, 128 increments
  • Electrical Connection: Terminal box on B-side
  • Shaft Type: Plain shaft with sealing ring
  • Housing Specification: Explosive-proof, conforms with ATEX standard.
