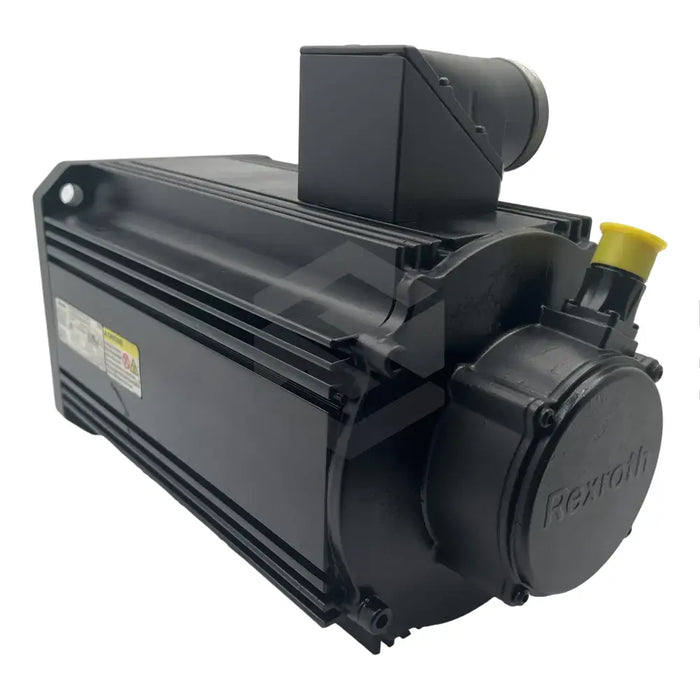

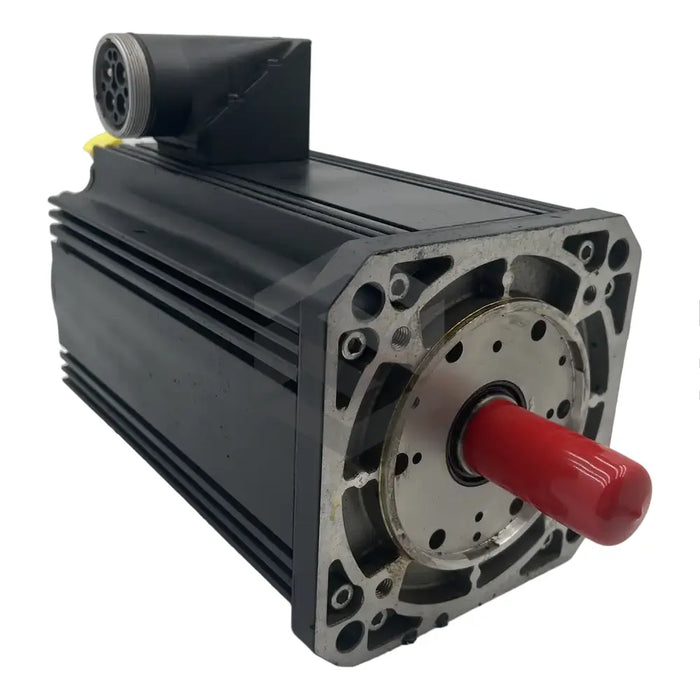

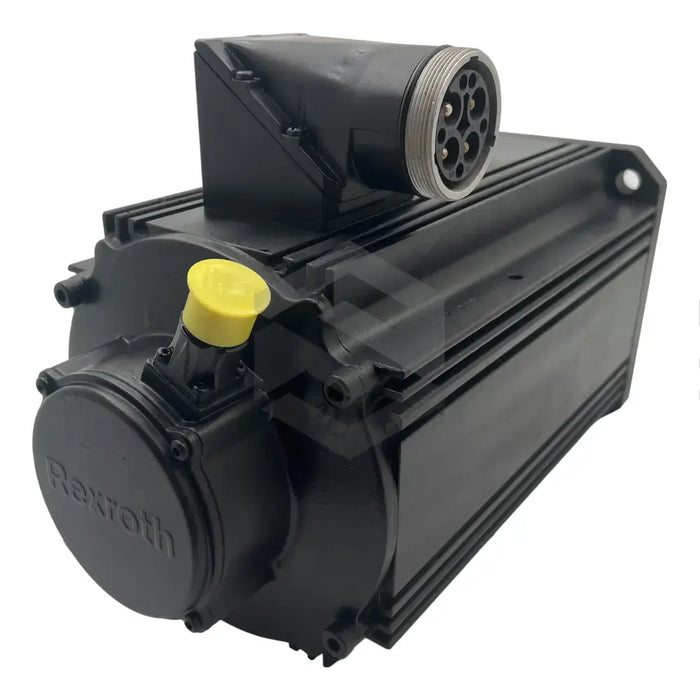

series image of MSK100B-0300-NN-M1-BG2-NNNN

MSK100B-0300-NN-M1-BG2-NNNN

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat's MSK100B-0300-NN-M1-BG2-NNNN is part of the cutting-edge Indradyn S series of synchronous servo motors. With high dynamic performance, torque density and precision, these motors utilize an optical encoder for precise operation. They cater to a wide variety of applications, including machine tools, packaging, and robotics due to their customizable interfaces and driving powers. The MSK100B-0300-NN-M1-BG2-NNNN encompasses a holding brake that releases electricity and a standard plain shaft with a sealing ring for smooth running. It features an advanced optical multiturn encoder with Hiperface that allows for detailed position recording. Enclosed in an epoxy polyamide resin coating, the motor offers resistance to various substances including dilute acids and current mineral oils. Ideally, it should operate at an environmental temperature of 40°C, relative humidity of 95%, and an elevation of 1000m above sea level. The motor carries an IP 65 Ingress Protection rating.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: Indradyn S synchronous servo motors
  • Product Model: MSK100B-0300-NN-M1-BG2-NNNN
  • Features: High dynamics, high torque density, high precision
  • Design: Compact
  • Applications: Machine tools, printing and paper processing machines, food and packaging machines, metal forming machines, robotics
  • Holding Brake: Electrically released, 70Nm holding torque
  • Shaft: Standard plain shaft with shaft sealing ring
  • Encoder: Optical multiturn encoder with Hiperface, 4,096 mechanical motor rotations
  • Data Memory: Stores motor type name, control loop parameters, and other motor parameters
  • Coating: 2K epoxy resin, black (RAL9005)
  • Resistance: High resistance to dilute acids/alkaline solutions, water, sea-water, sewage, current mineral oils, limited resistance to organic solvents and hydraulic oil
  • Operating Conditions: Ambient temperature of 40°C, relative humidity of 95%, 1000m above sea level
  • Ingress Protection Rating: IP 65.
