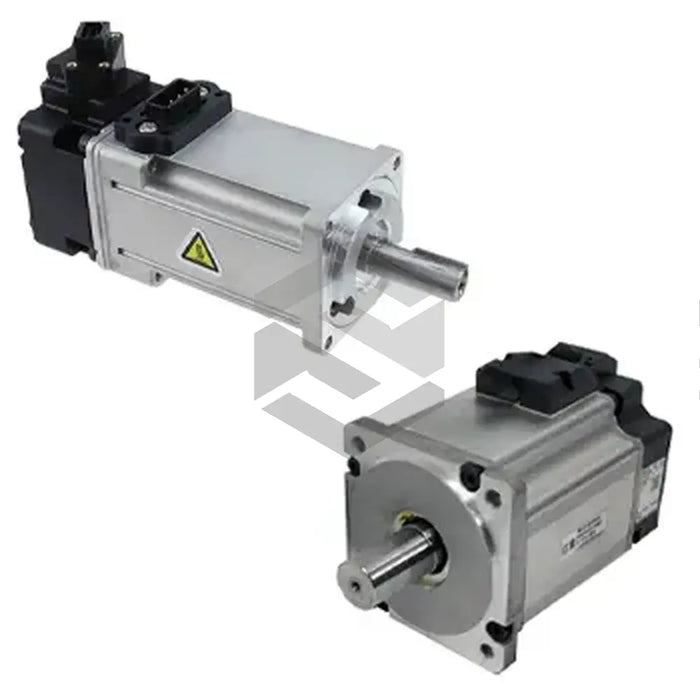

series image of MSM030C-0300-NN-C0-CG1

MSM030C-0300-NN-C0-CG1

by Bosch Rexroth Indramat
Request a quote
Bosch Rexroth Indramat's MSM030C-0300-NN-C0-CG1 motor forms part of their EcoDrive Cs servo drive system, along with complementary drive controllers, communication cards and other accessories. This model specifically works with the DKCxx.x-012 drive controller. It is deployed in various applications ranging from machine tools to printing and handling systems. The motor's features include a cable tail electrical connection, a plain shaft, an incremental encoder with 1024 increments and an electrical release type holding brake. It comes in a size of 030, with a 0300 winding code, measuring 156.5mm in length, and 60mm in height and width. The MSM030C-0300-NN-C0-CG1 operates on natural convection cooling and offers 1.2 Nm of continuous torque at standstill. It weighs 1.5kg, with an installation altitude limit of 1000m, and operates effectively within an ambient temperature range of 32 to 104 degrees Fahrenheit. It is rated IP65 for protection.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: MSM030C-0300-NN-C0-CG1 Motor
  • Compatible With: DKCxx.x-012 Drive Controller
  • Applications: Machine Tools, Printing Machines, Handling Systems
  • Motor Size: 030
  • Length: C
  • Winding Code: 0300
  • Features: Cable Tail Electrical Connection, Plain Shaft, Electrical Release Type Holding Brake (1.27 Nm), Incremental Encoder with 1024 Increments
  • Electrical Connection Length: 200 Millimeters
  • Motor Shaft Diameter: 14 Millimeters
  • Motor Length: 156.5 Millimeters
  • Motor Height/Width: 60 Millimeters
  • Cooling Type: Natural Convection (Without Blower)
  • Continuous Torque at Standstill: 1.2 Nm
  • Continuous Current at Standstill: 2.3 Amps
  • Peak Current: 7.4 Amps
  • Pole Pairs: 4
  • Rated Speed: 3000 RPM
  • Rated Torque: 1.2 Nm
  • Rated Current: 2.3 Amps
  • Rated Power: 377 Watts
  • Rated Voltage: 132 Volts
  • Thermal Time Constant: 25 Seconds
  • Weight: 1.5 Kilograms
  • Maximum Installation Altitude: 1000 Meters
  • Protection Rating: IP65
  • Insulation Class: B (As per DIN VDE0530 Part 1)
  • Recommended Ambient Temperature Range: 32 to 104 Degrees Fahrenheit
