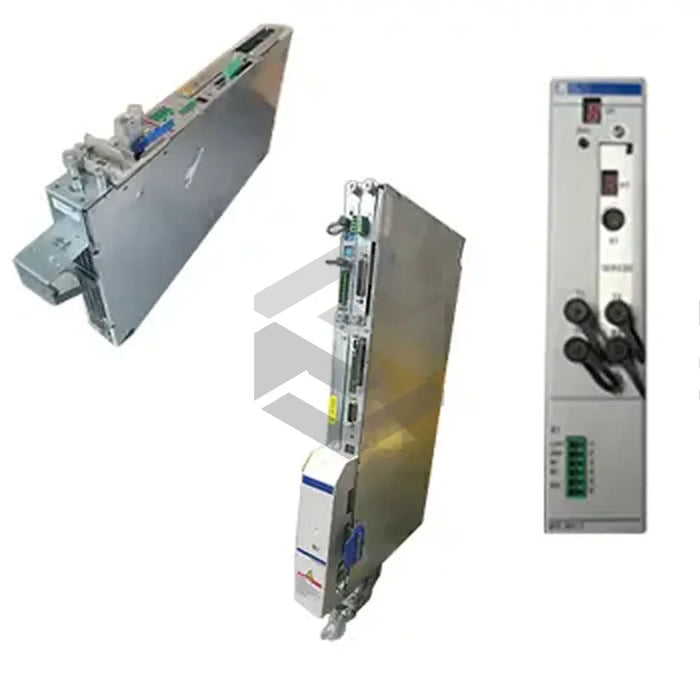

S image of MTS-R02.1-M1-B1-S4-NN-FW

MTS-R02.1-M1-B1-S4-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat's MTS-R02.1-M1-B1-S4-NN-FW module is a versatile industrial component featuring a maximum heat loss of 19.6W, peak current consumption of 700mA and a weight of 1.65kg. Enclosed within dimensions of 83.7 (W) x 192 (H) x 156 (D), it provides several interfaces for programming and general serial connections, as well as optional RS232, INTERBUS, and PROFIBUS-DP interfaces. With an operation elevation limit of 1500m and transport limit of 3500m, the unit can function within an ambient temperature range of 0 to 55 degrees and is built to withstand up to 75% operating humidity and 95% transport humidity. The MTS module is designed to fit onto a DIN rail in a switchgear cabinet and requires two slots within an RMB02.2 rack alongside the CNC controller unit. It also features three additional U1, U2, and U3 module locations for interface connections.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MTS-R02.1-M1-B1-S4-NN-FW

Max Heat Loss

19.6W

Max Current Consumption

700mA

Weight

1.65kg

Dimensions

83.7 (W) x 192 (H) x 156 (D)

Interfaces

Programming interface, General serial interface, Optional Interfaces (Two RS232, INTERBUS, PROFIBUS-DP)

Max Installation Elevation (operation)

1500m

Max Installation Elevation (transport)

3500m

Operating Humidity

75%

Transport Humidity

95%

Operating Temperature

0-55 degrees

Storage Temperature

-25 to 70 degrees

Installation

Inside RMB02.2 Rack

Number of Slots

Two

Additional Module Locations

U1, U2, U3

Configuration

B1-S4-NN

Mechanical Design

RECO Unit

Firmware

Ordered Separately

Programming Interface

RS232

Document Storage

SPS User Program, Retentive Data

Mounting

DIN rail in switchgear cabinet or direct mounting plate.
