P22NRXA-LNN-NS-00

Original price $834.00 - Original price $834.00
Original price
$834.00
$834.00 - $834.00
Current price $834.00
In Stock, Ships 1 - 2 Days
Request a quote

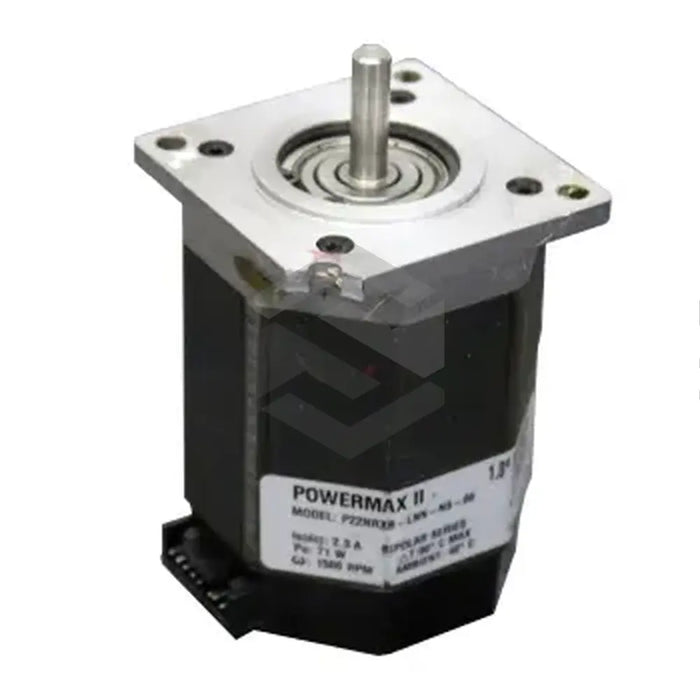

The Pacific Scientific P22NRXA-LNN-NS-00 is a double rotor stack stepper motor designed for efficiency, durability, and cost-effectiveness. With better heat dispersion and high acceleration rates due to its low inertia rotor, this motor ensures superior performance. It weighs between 1.13kg to 2.5kg and features a series configuration. The rotor inertia ranges from 0.025 to 0.0036 kgm 2 X 10 -3. It possesses a detent torque from 0.049 Nm to 7Nm and a holding torque from 1.39 Nm to 197Nm. The motor operates optimally at a rated current of 6.5A, with any excess leading to potential demagnetization. It showcases a phase resistance of 0.21 Ω and a thermal resistance of 4.5°C per watt, measured when stationary and unmounted. Furthermore, its phase inductance is 0.4 mH, assessed using a 1 kHz, 1A Impedance Bridge, and it operates at temperatures up to 40 degrees Celsius in still air, and 130 degrees Celsius in windings.
30 Day Warranty
Technical Specifications
  • Manufacturer: Pacific Scientific
  • Product Type: Step Motor
  • Model: P22NRXA-LNN-NS-00
  • Rotor Type: Double Rotor Stacks
  • Rotor Series Arrangement: Standard and Low Inertia Rotors
  • Estimated Weight: 1.13kg to 2.5kg
  • Detent Torque: 0.049 Nm to 7Nm
  • Holding Torque: 1.39 Nm to 197Nm
  • Rated Current: 6.5A
  • Phase Resistance: 0.21 Ω
  • Thermal Resistance: 4.5°C/watt
  • Phase Inductance: 0.4 mH
  • Temperature in Still Air: 40 degrees Celsius
  • Temperature in Windings: 130 degrees Celsius.
