R911241263

Request a quote

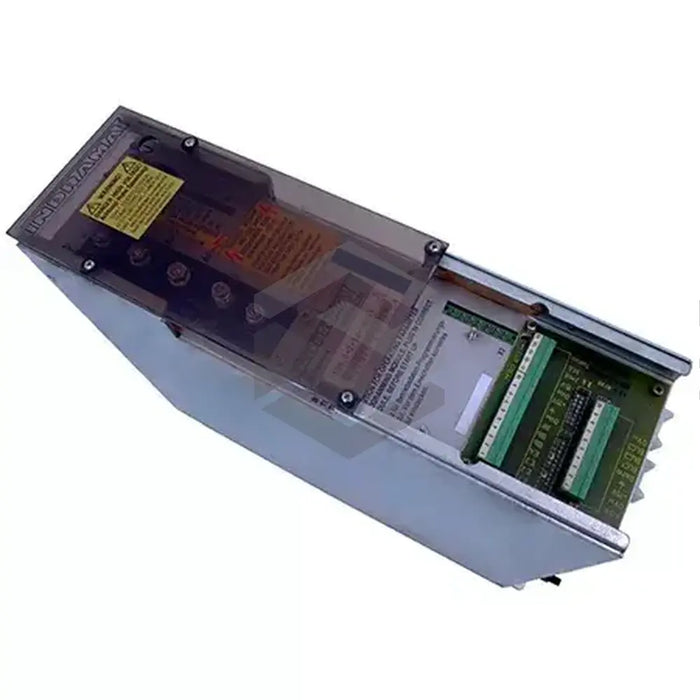

Produced by Bosch Rexroth Indramat, R911241263 (TDM 4.1-030-300-W1/S102) is a uniquely designated servo drive module widely utilized for speed control within numerically controlled machinery. Boasting a current rating of 30 A and a rated voltage of 300V DC, the module allows for high short-duration accelerations and torque-led drive operations for paired motor configurations. The three-phase servo drive system encompasses mains output elements, the actual servo drive unit, a motor cable, and an MAC servo motor. The R911241263 (TDM 4.1-030-300-W1/S102) servo drive module showcases a drift compensation feature promoting minimal temperature drift operation. The ZERO ADJ potentiometer located on the primary control panel facilitates a zero-drift setting. While the module operates without constraint within an ambient temperature of +5 - +45-degrees Celsius, its maximum installation height is limited to 1000 meters above sea level. Exceeding this height could lead to reduced current and torque output for the associated motors. The R911241263 (TDM 4.1-030-300-W1/S102) can also function as a torque-controller within a tandem drive setting, where mechanical attachments are required to prevent the slave drive from accelerating. Cooling of the module is handled by an inbuilt 220 V AC fan. Commissioning of the product necessitates tools such as multimeters for varying voltage types and a battery-powered set-point encoder.
30 Day Warranty
Technical Specifications
  • Model Number: TDM 4.1-030-300-W1/S102
  • Tandem Drive Setup: Possibility of operation as a drive-torque controller
  • Manufacturer: Bosch Rexroth Indramat
  • Torque-Controlled Drive Functions: Master/Slave motor configurations
  • Component Makeup: Mains output components, Servo drive module, Motor cable, MAC Servo motor
