R911344545

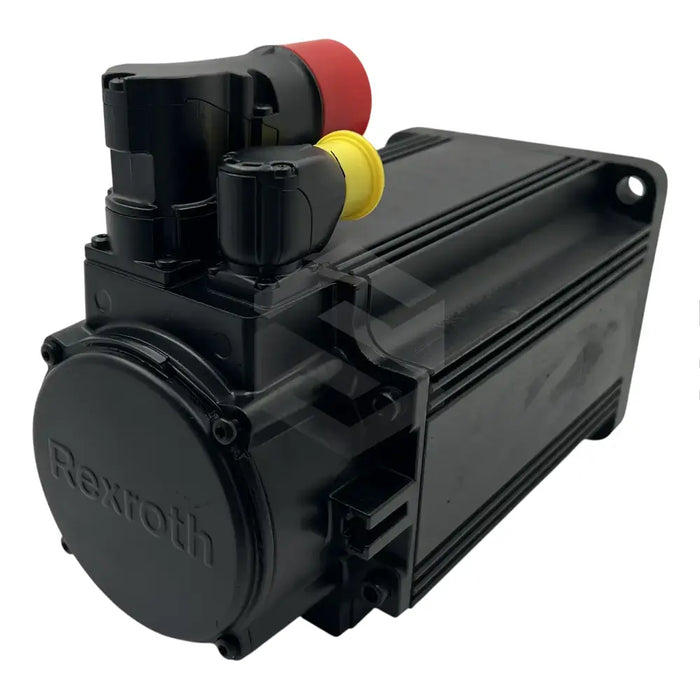

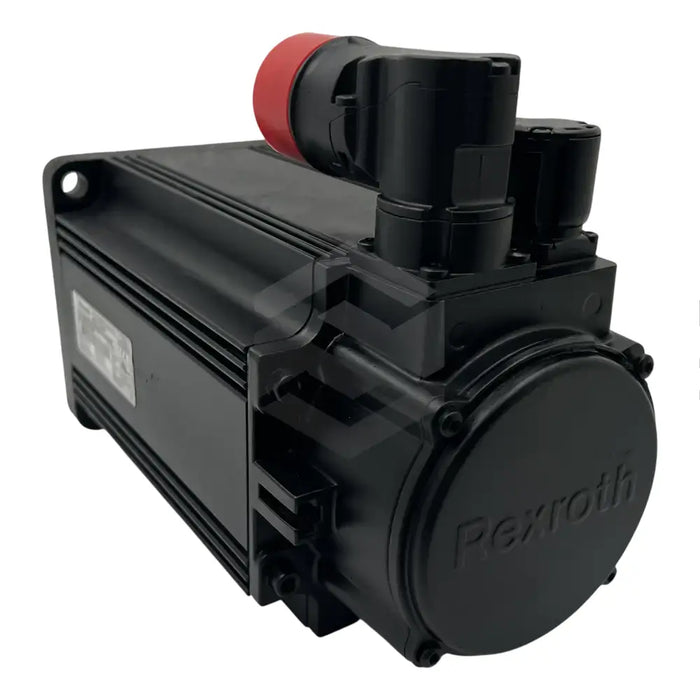

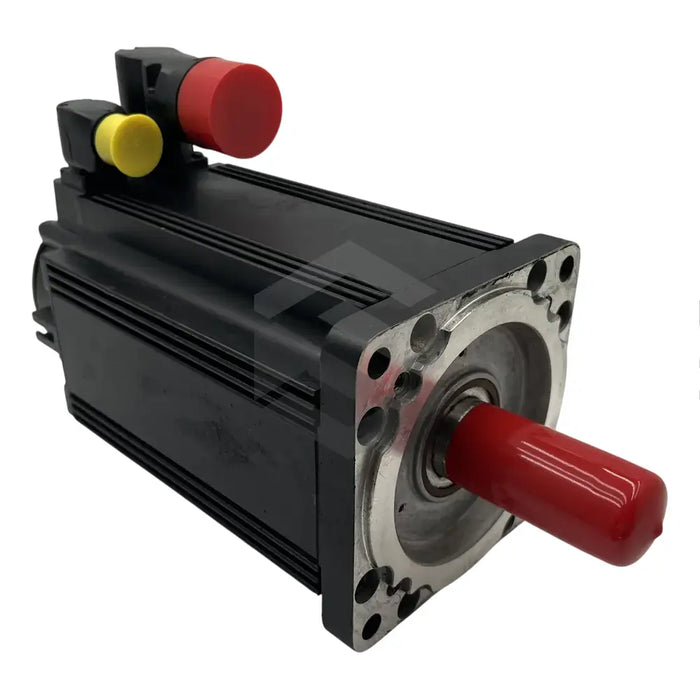

The R911344545 (MSK070D-0300-NN-M3-UG1-NNNN) is a cutting-edge MSK servo motor produced by Bosch Rexroth Indramat, recognized for compact design and high torque density. The motor is used as the primary driver in various applications such as machine tools, paper processing and printing machines, metal-forming technology, and food processing and packaging equipment. It forms part of the IndraDrive system by Rexroth, which is designed for a wide power spectrum and narrow size increments.
The R911344545 (MSK070D-0300-NN-M3-UG1-NNNN) model features an electrically released 23Nm holding brake, ensuring the servo axis remains stationary when the machine is deactivated. It operates optimally at a speed of 4,900 RPM and a torque of 52.5Nm. The motor has an output shaft with a sealing ring that accommodates the attachment of various drive components. A built-in temperature model and sensor independently monitor the motor's temperature. It also features a multi-turn encoder with a Hiperface interface and 16 signal periods, enabling the recording of the motor's indirect absolute position across 4,096 mechanical rotations. Its protection class is IP 65 according to EN 60529, and installation should be done at a maximum height of 1000m above sea level.
30 Day Warranty
Technical Specifications
