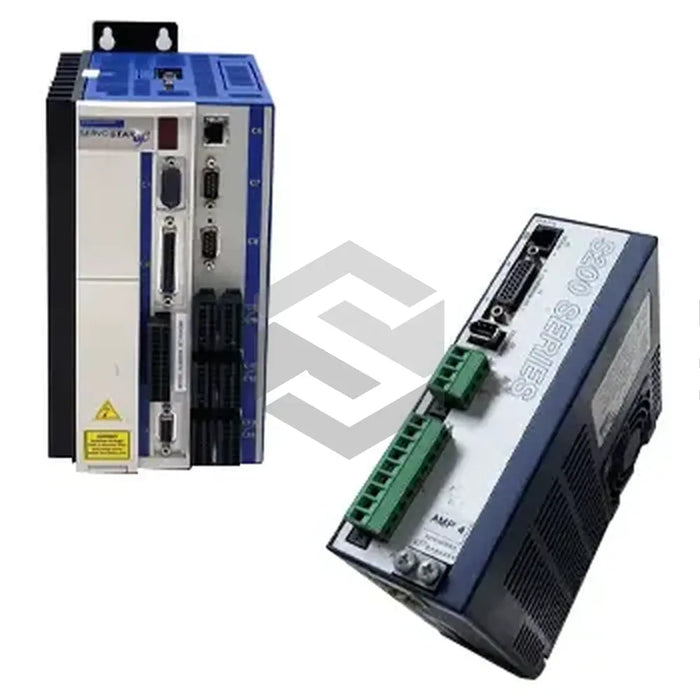

series image of SS2000MD7-RC

SS2000MD7-RC

by Danaher
$2,739.67 - $2,739.67
$2,739.67
$2,739.67 - $2,739.67
$2,739.67
In Stock, Ships 3 - 5 Days
Created by Danaher, the SLO-SYN SS2000MD7-RC is a highly versatile, bipolar, two-phase PWM drive, intended to manage a stepper motor in full or half steps as well as full, 1/16, 1/64, or 1/128 micro-steps. Its compact and robust design, with a maximum speed of 3000 rpm, ensures efficient operation in various applications. Protectively designed with optically separated control signals to minimize electrical noise interference, it also includes short circuit proof and thermal protection features. For optimal use and lifespan, it should be operated between 0 and 50 degrees Celsius and stored in temperatures of -40 to 75 degrees Celsius. Ideally, it should be used with Superior Electric KM, and M motor series and housed in a separate metal case to further shield from electrical noise.
30 Day Warranty
Technical Specifications
  • Manufacturer: Danaher
  • Product model: SS2000MD7-RC
  • Mode: Bipolar, Speed adjustable, Two-Phase PWM drive
  • Operation: Full or half steps, Full, 1/16, 1/64, or 1/128 micro-steps
  • Maximum Speed: 3000 rpm
  • Control Signals: Optically separated
  • Protection: Short circuit proof, UL recognized, Thermal protection
  • Dimensions: 4.375x1.36x5.73 inches
  • Weight: 1.5 pounds
  • Operating Temperature: 0-50 degrees Celsius
  • Storage Temperature: -40-75 degrees Celsius
  • DC Input Range: 24VDC-75VDC
  • Maximum Installation Elevation: 3048 meters
  • Humidity: 95% maximum
  • Compatibility: Superior Electric KM and M series Motors
  • Operating Supply: Unregulated supply or regulated supply with an added filter capacitor
  • Mounting Requirement: Vertical, 2 inches space from mount surface.
