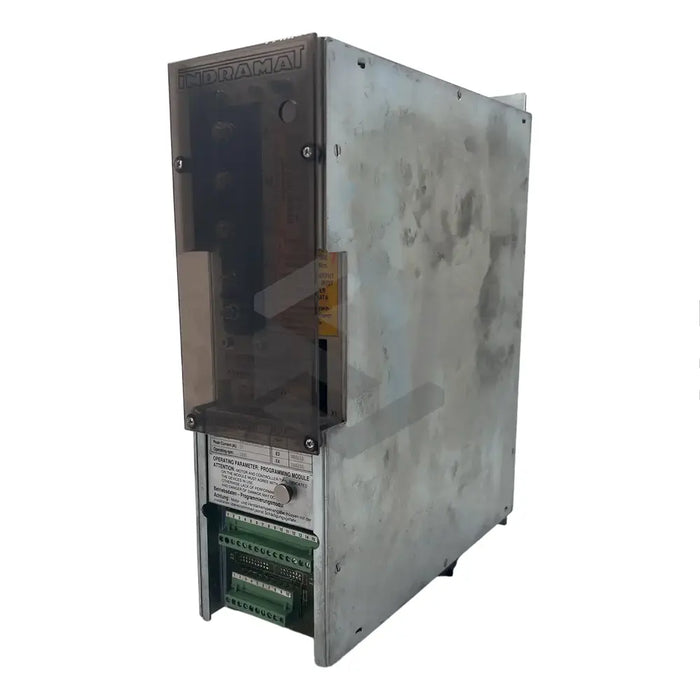

C image of TDM 1.2-050-300-W1 | Main (Front Left)

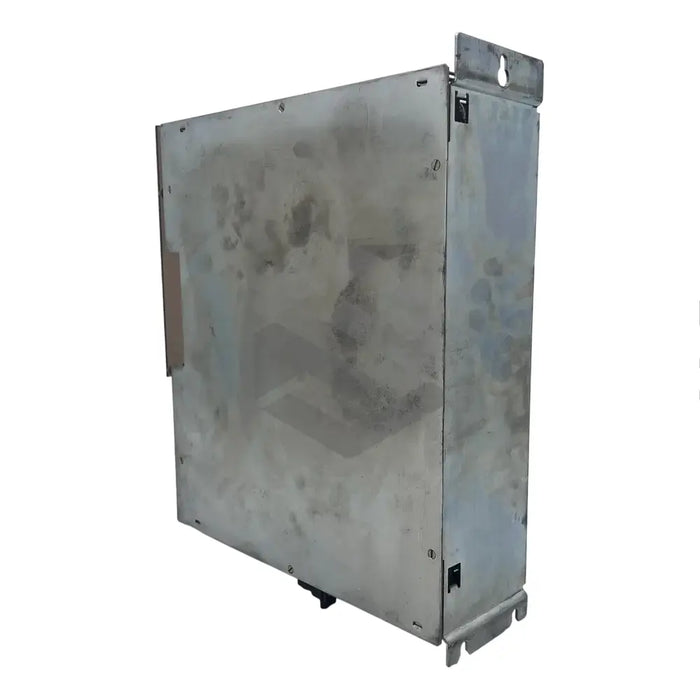

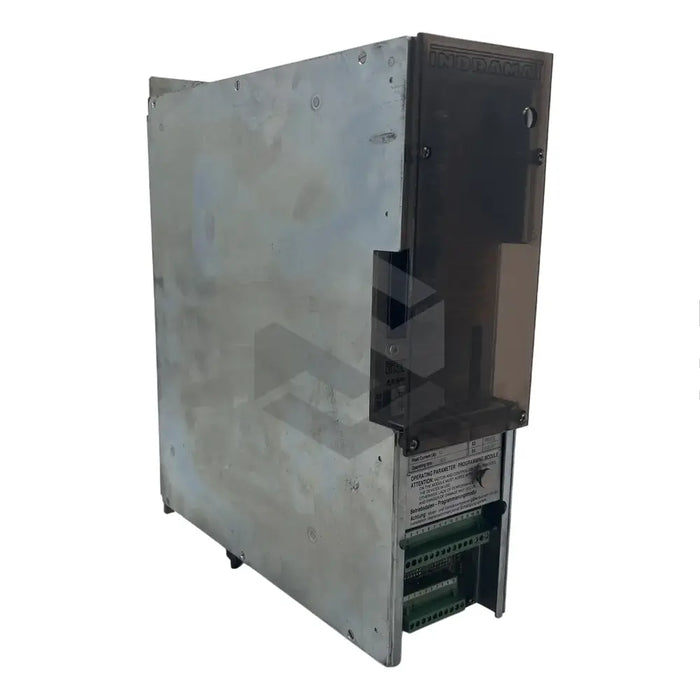

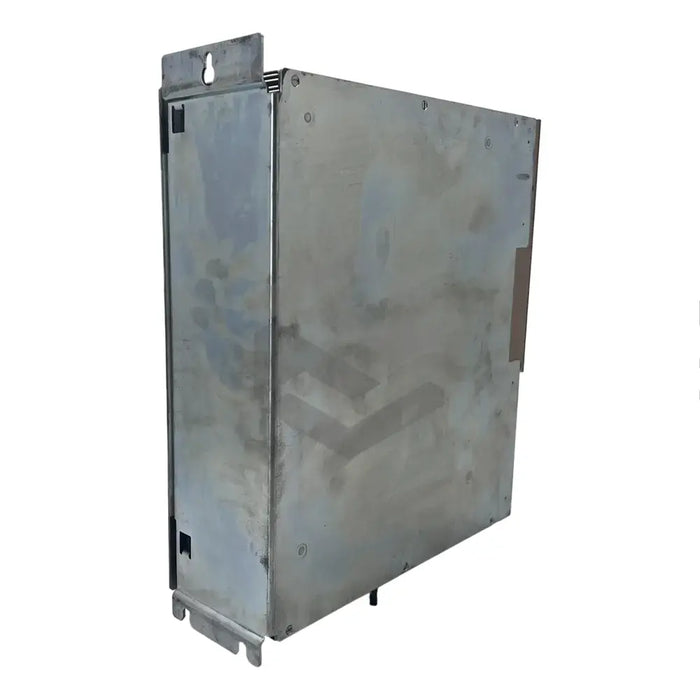

TDM 1.2-050-300-W1

by Bosch Rexroth Indramat
$1,712.35 - $1,712.35
$1,712.35
$1,712.35 - $1,712.35
$1,712.35

Available, Shipping Varies

The TDM 1.2-050-300-W1 is a Bosch Rexroth Indramat AC servo drive designed with a modular structure. It's designed to work with the MAC71 to MAC160 series of servomotors, making it an economical solution for automation requirements. Its 50A current rating and its 300VDC link circuit voltage, adjustable by ±15%, highlight its suitability for low to mid power ranges. Installation is facilitated by hexagonal recessed hole screws, and a built-in fan provides forced ventilation, with a mandated 80mm gap above and below for airflow. The servo drive can operate optimally between +5°C and +45°C, and function at altitudes up to 1,000m without alteration of rated data. This device should be housed in a sealed cabinet that can tolerate up to +45°C and must be free from heat-producing components beneath it. The fan operates at either 115V or 220V.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

AC Servo Drive

Model Code

2

Series Code

1

Current Rating

50A

Link Circuit Voltage

300VDC

Voltage flexibility

±15%

Weight

10g

Mounting Method

Screws with hexagonal recessed holes

Mounting Altitude

1,000m above sea level maximum without reduction of rated data

Cooling Method

Built-in fan, forced ventilation

Operating Temperature

+5°C to +45°C

Fan Supply Voltage

115V or 220V

Ventilation Gap Requirement

80mm minimum

Housing Requirements

Completely sealed, able to withstand maximum of +45°C

Heat-Producing Parts Restrictions

Must not be installed directly under device
