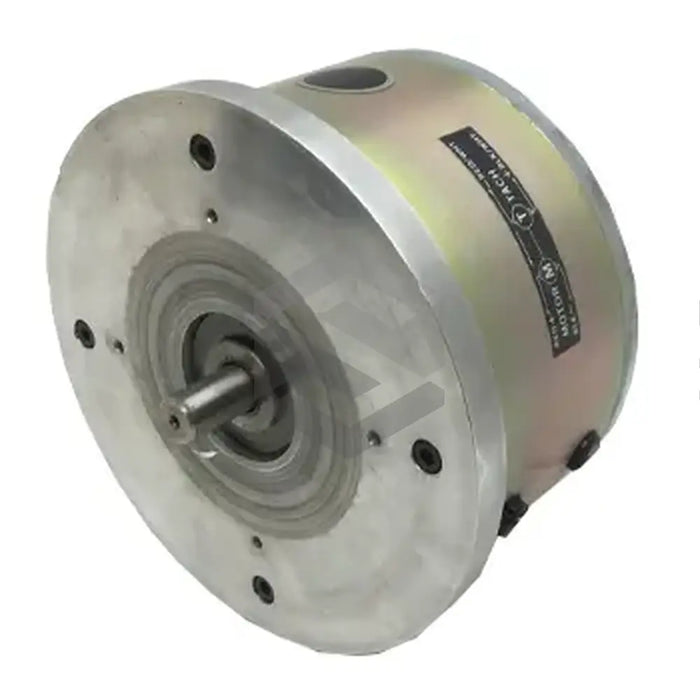

P image of U9D-H/HP ENC-SPCL

U9D-H/HP ENC-SPCL

by Kollmorgen
$1,811.89 - $1,811.89
$1,811.89
$1,811.89 - $1,811.89
$1,811.89

In Stock, Ships 1 - 3 Days

The Kollmogen U9D-H/HP ENC-SPCL is a high-performance Servodisc Platinum series servo motor for delivering thorough motion control. Differing from traditional motors, it boasts an iron-less disc armature increasing efficiency and performance. The lighter and compact armature is made from multiple copper conductor layers, accelerating up to ten times faster than conventional servo motors. Eliminating cogging at all functioning speeds, Servodisc motors offer rapid torque output due to their low electrical time constant. Their peak torque capability surpasses that of ironcore motors, and there's almost no arcing due to very low induction, ensuring longer brush life. Available for a vast range of applications, these motors vary in power from 30 Watts to 4.5 kilowatts. This specific U9D-H/HP ENC-SPCL model has a rated speed of 3000 RPM and includes numerous options such as integral tachometers, forced air cooling, and fail-safe brakes among others. Only certified professionals should install and maintain these Servodisc motors.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Type

Kollmogen U9D-H/HP ENC-SPCL Servodisc Platinum series servo motor

Motor Design

Iron-less disc armature

Key Feature

Accelerates up to ten times faster than conventional servo motors

Speed Range

0 to 3000 RPM in 60 degrees of rotation

Cogging

Zero at all operating speeds

Shape

Unique, suitable for tight packaging solutions

Electrical Time Constant

Very low, results in faster torque output

Peak Torque Capability

High compared to conventional ironcore motors

Arcing

Very low

Brush Life

Very long for most applications

Output Power Ratings

Motors with 30 Watts to 4.5 kilowatts are available

Additional Options

IP65 rating, hardened commutator, optical encoders, integral tachometers, aluminum armature, forced air cooling, internal/external tachometers, industrial covers with MS connectors, fail-safe brakes

Rated Speed

3000 RPM

Installation & Maintenance

Only by qualified personnel
