S image of VSP16.1BKE-1G0NN-C1C-AN-NN-FW

VSP16.1BKE-1G0NN-C1C-AN-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

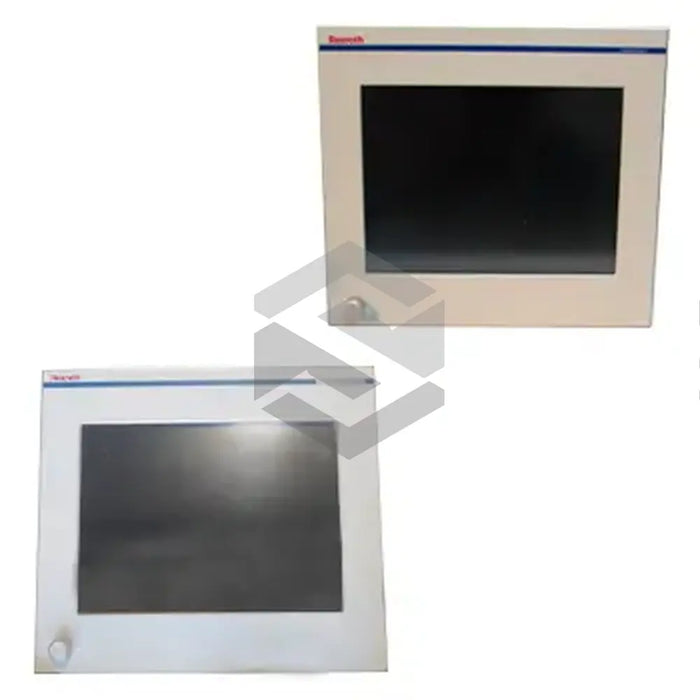

The Bosch Rexroth Indramat VSP16.1BKE-1G0NN-C1C-AN-NN-FW is a PC-based operator terminal from the VSP series. It features a front panel with IP 65 protection rating and a rear-side with IP 10 rating. The front panel is equipped with a 12-inch TFT display which supports 600 x 800 resolution and 256,000 colors, and is accompanied by 16 machine function keys. The backside houses the power input sockets, various interface connections (PS/2 for keyboard and mouse, external VGA, parallel and serial interfaces, two USB and an Ethernet interface), and 6 PCI card connections. The terminal accepts AC input ranging from 90 to 264 Volts and operates optimally at 5 to 45 degrees Celsius temperature, with a maximum temperature gradient of 3°C per minute, up to an altitude of 2000 meters. It is powered by a 2 GHz Intel Celeron processor and offers 1GB RAM with 20GB storage. Its installation requires trained personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

VSP series

Front Panel Protection

IP 65

Back Panel Protection

IP 10

Display Size

12 inch TFT

Touch Support

No

Display Resolution

600 x 800

Number of Display Colors

256,000

Front Panel Dimensions

290 x 250 millimeters

Terminal Depth

256 millimeters

Interfaces

PS/2 for keyboard, PS/2 for mouse, external VGA connection, parallel interface, serial interface, two USB interfaces, Ethernet interface

Supply Voltage

90 to 264 Volts AC

Input Current at 230 Volts AC

2.5 Amps

Input Current at 115 Volts AC

5 Amps

Inrush Current at 264 Volts AC

100 Amps

Operating Conditions

5 to 45 degrees Celsius temperature, maximum gradient of 3 degrees Celsius per minute, altitude of up to 2000 meters

Processor

Intel Celeron at 2 Gigahertz

RAM

1 Gigabyte

Storage

20 Gigabytes

Installation

To be performed by trained personnel.
