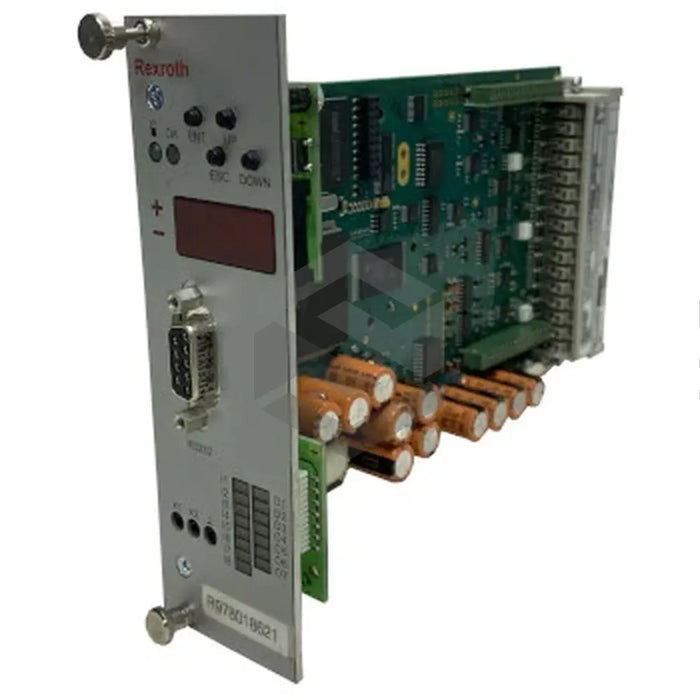

VT-HACD-1-13-V0-1-0-0

Original price $4,774.00 - Original price $4,774.00
Original price
$4,774.00
$4,774.00 - $4,774.00
Current price $4,774.00
Available, Shipping Varies
The VT-HACD-1-13-V0-1-0-0, a digital axis controller and command card by Bosch Rexroth Indramat, is a commended device from the 13 series, providing various functionalities for industrial use. Equipped with input capabilities for incremental and SSI digital measurement systems, it allows for diverse signal linking options and position control with superimposed pressure. A front display with four control keys enhances its customizability, along with dialog functions for machine data setting. It does not, however, come with a bus connection or valve output stage and requires additional cables for effective connectivity. In-built is a microcontroller which manages the device's functionality. Additionally, it can monitor a variety of components, from position sensors to internal voltages, although some limitations apply regarding the display usage. The device operates with a voltage range of 21-30V, supporting an analog output adjustment for amplification and adjustment, and digital outputs configured for internal and error flags.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: VT-HACD-1-13-V0-1-0-0
  • Type: Digital Axis Controller
  • Input Support: Incremental and SSI Digital Measurement Systems
  • Options: Multiple Switch-over and Signal Linking
  • Control Support: Position Control with Force Control or Superimposed Pressure
  • Display: Front Display with Four Keys
  • Customization: Online and Offline Dialog Functions for Machine Data Setting
  • Bus Connection: Not Incorporated
  • Valve Output Stage: Not Incorporated
  • Connectivity Requirements: 1:1 Cable or VT-HACD-1X/HACD-PC/0.3.0 Interference Cable Set and BODAC PC Program
  • Disk Space: 250MB
  • Microcontroller: Present
  • Outputs Adjustment: By Amplification (for analog) and Adjustment (for digital)
  • Internal and Error Flag Configuration: Yes
  • Fuse: 4A Time Lag
  • Monitoring Support: Position Sensors for Cable Break, Memory, Microcontroller, 10V Reference Voltage, Internal Voltages, Supply Voltage
  • Display Customization: No Changes Allowed for Error Monitoring, Trigger Conditions, and Signal Links
  • Load Resistance: 1 kilo-ohm (when first analog output configured as voltage output)
  • Front Plate Width: 0.2 Inches (on the soldering side)
  • Operating Voltage: 21V to 30V
