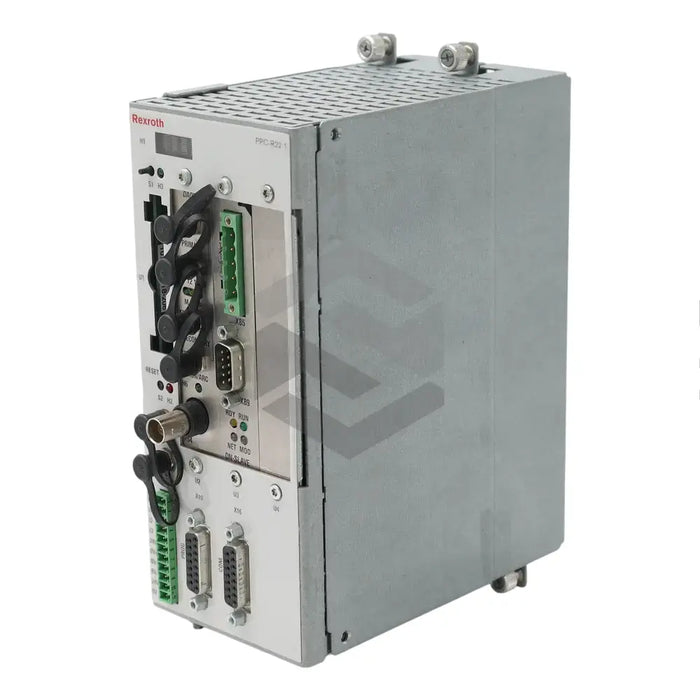

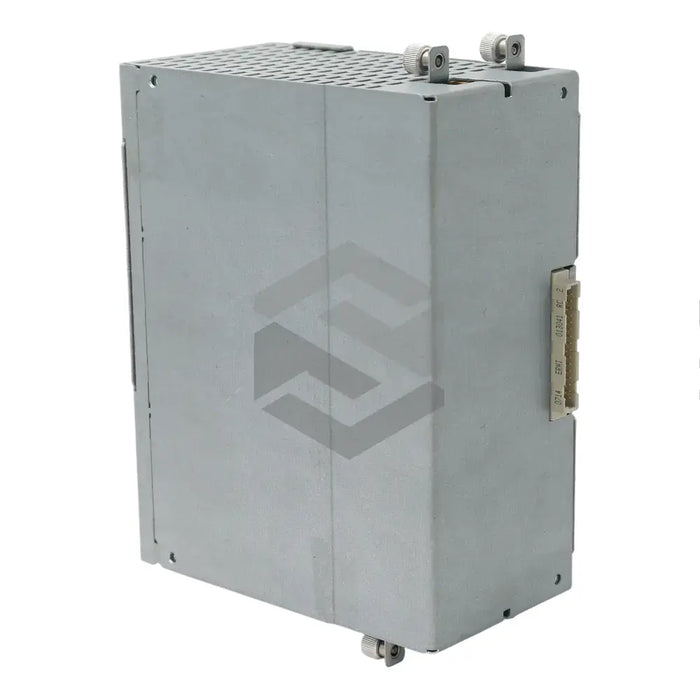

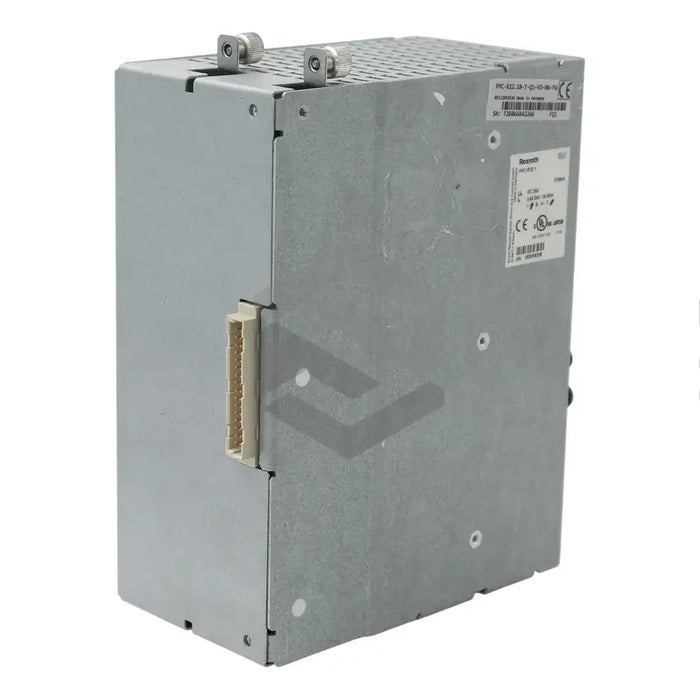

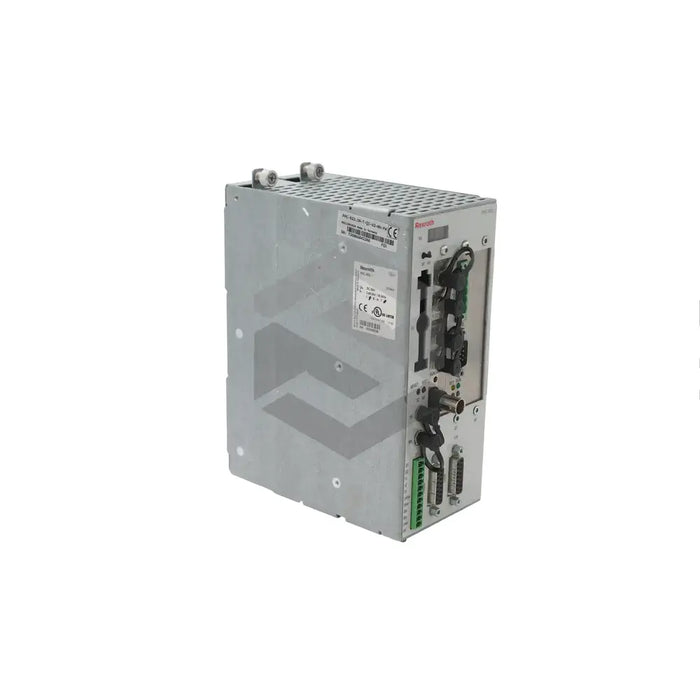

1070170289
The Bosch Rexroth Indramat's 1070170289 (PPC-R22.1N-T-Q1-V2-NN-FW) is an autonomous motion and logic control system that caters to industrial applications including robotics and multi-axis motion control. Part of the Bosch Rexroth's VisualMotion 10 product series, it uses the VisualMotion GPP 10 firmware to integrate and manage coordinated and non-coordinated motion control with complex logic control tasks. The product is designed to be compatible with Reco 02 racks and meant to be used synchronously with EcoDrive 03 digital servo drives and IndraDrive Diax 04 drives. The system features a fiber optic-based SERCOS interface that enables real-time direct communication with digital servo drives, a 10 / 100 Mbps Ethernet interface with RJ-45 jack and two distinct serial ports.
One of the serial ports is programmed for the operation of the system whereas the other one serves for serial communication with other devices. The Ethernet port functions for routine TCP/IP communication and additionally as an Ethernet/IP fieldbus slave interface. The system lacks encryption for control data over the Ethernet, hence a router and hardware firewall are advised to avoid unauthorized access. The 1070170289 (PPC-R22.1N-T-Q1-V2-NN-FW) has an in-built DeviceNet slave module but lacks a memory expansion module. It weighs 2.87 pounds with enclosure dimensions of 184 x 8 x 165 millimeters. The system runs at maximum 1.2 Amps at 24 Volts DC and is rated IP20 in enclosure rating.
30 Day Warranty
Technical Specifications
