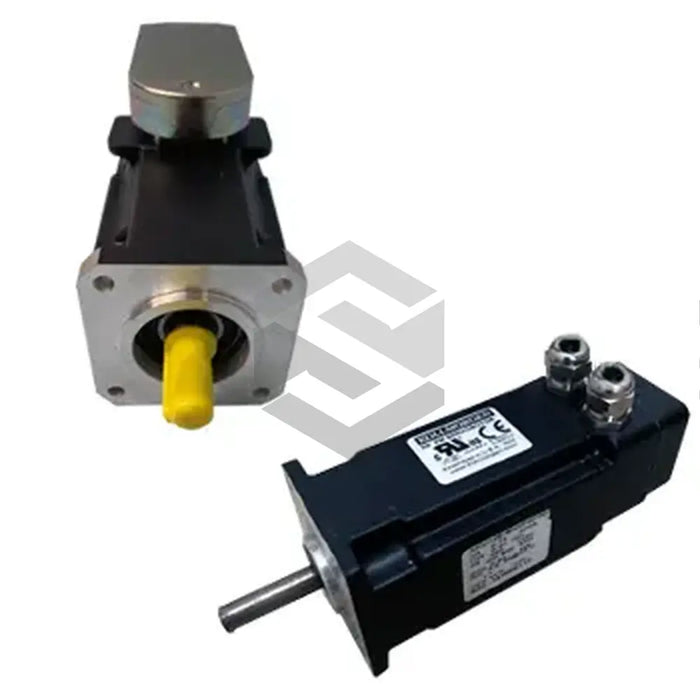

AKM22E-ANSNR-02
by Kollmorgen
The AKM22E-ANSNR-02 is a synchronous servomotor designed and manufactured by Kollmorgen, to be exclusively paired with Kollmorgen's SERVOSTAR servo amplifier. A vital detail is its smooth shaft without a holding brake, possessing a rotor length of 2 and requiring special connectors for installation. It's critical not to alter the insulation distances during handling and transportation, to avoid potential damage. The product's couplings should be suitably tightened with a locking thread, while paying due attention to avoid axial load impacting the shaft. For a prolonged lifespan, it’s crucial to restrict radial and axial loads to permissible limits to avert premature wear. It features a rated torque of 0.85 Nm, and weighs about 1.1 kg. As per regulations, the motor wiring should be handled according to the associated servo amplifier instructions. Key details include a 6% power derating for altitudes between 1,000m and 2,000m above sea level, and non-compatibility with applications beyond the ambient operating temperature range.
