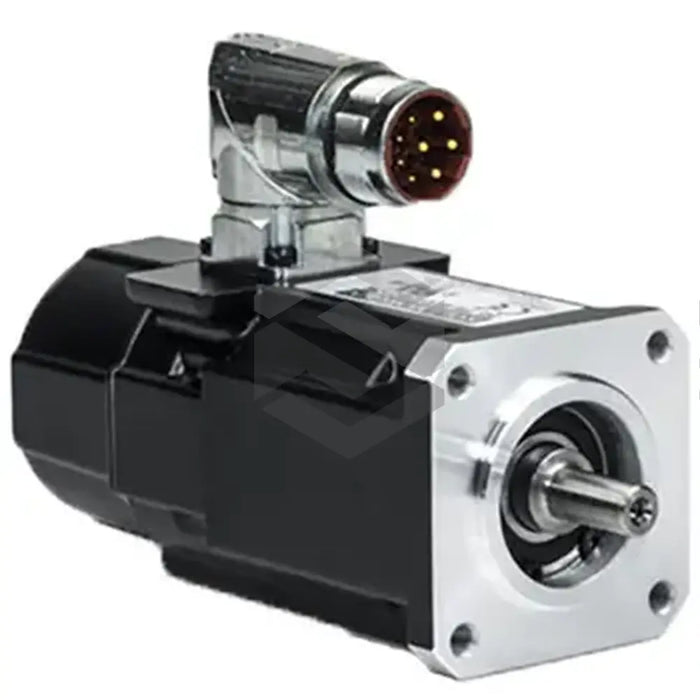

Kollmorgen's AKM23F-BNMNR-00 belongs to its renowned AKM series. This series showcases synchronous servo motors that demonstrate constant speed regardless of the load, thanks to their wider air gap. They exhibit striking efficiency, with up to a 90 percent rate at even low speeds. These motors are versatile, being compatible with industrial robots, machine tools, textile and packaging machinery. For maximum performance, pairing with a Kollmorgen ServoStar amplifier is recommended. The AKM23F-BNMNR-00 model introduces salient features like a brushless design to decrease maintenance, and a temperature sensor inside the stator windings to regulate performance efficiency. A consistent resolver for feedback makes the motor resilient to electrical interruptions. Lastly, the motor can attain a maximum mechanical speed of 8000 RPM and a peak nominal current of 17.2 ARMS, along with a 320 Volts DC maximum bus voltage rating, and a 1.18 N-m stall torque at 100 degrees Celsius winding temperature.
30 Day Warranty
Technical Specifications
  • Product Brand: Kollmorgen
  • Product Series: AKM
  • Model: AKM23F-BNMNR-00
  • Type: Synchronous Servo Motor
  • Design: Brushless
  • Use for: Industrial Robots, Textile, Machine Tools, Packaging Machinery
  • Feedback Mechanism: Resolver
  • Maximum Bus Voltage: 320 Volts DC
  • Maximum Stall Torque: 1.18 N-m at 100 degrees Celsius
  • Maximum Mechanical Speed: 8000 RPM
  • Peak Nominal Current: 17.2 ARMS
  • Efficiency: Up to 90 percent
  • Feature: Temperature sensor inside stator windings.
