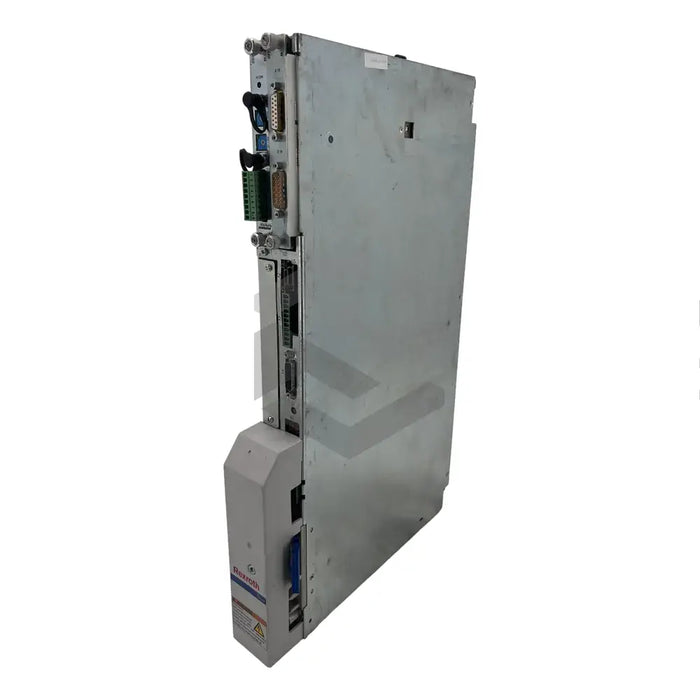

product Main (Front Left) image of HDS02.2-W040N-HS09-01-FW

HDS02.2-W040N-HS09-01-FW

by Bosch Rexroth Indramat
$3,150.34 - $3,150.34
$3,150.34
$3,150.34 - $3,150.34
$3,150.34
Available, Shipping Varies
The HDS02.2-W040N-HS09-01-FW is a second generation, high-quality drive controller produced by industry frontrunner, Bosch Rexroth Indramat. The HDS series is renowned for unmatched performance and reliability. This particular model includes an internal blower for effective cooling and operates with a current rating of 40A. It utilizes a SERCOS interface for command communication within its DIAX04 controller family and needs vertical installation to ensure correct ventilation. Safety features owing to low protective voltages are integrated in the design as per the standards set by IEC 363-4-411.1.5 and EN 50178/1998. The controller operates best between 5˚C to 45˚C and at altitudes from sea level to 1000m. Bear in mind that improper handling may lead to injuries and requisite safety gear should be worn during operation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product line: HDS series of 2nd generation drive controllers
  • Product model: HDS02.2-W040N-HS09-01-FW
  • Controller Line: 2nd version
  • Ventilation: Internal Blower
  • Current Rating: 40 A
  • Controller Family: DIAX04
  • Communication Interface: SERCOS
  • Function ID Code: 9 1st version
  • Installation: Vertical mounting with motor connection at bottom
  • Safety Features: Terminals and connections with voltages between 5 to 50 volts according to IEC 363-4-411.1.5 and EN 50178/1998
  • Ambient Operating Temperature: 5˚C to 45˚C
  • Elevation: 0 to 1000 m above sea level for rated data
