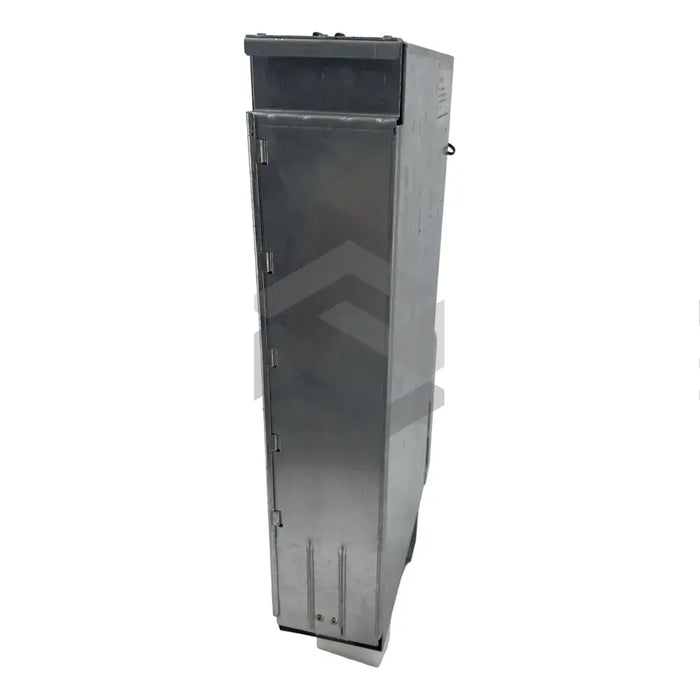

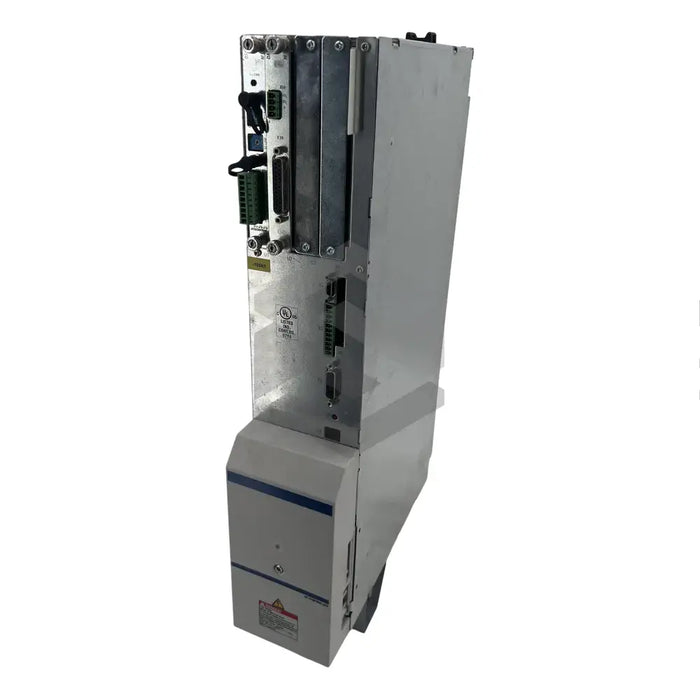

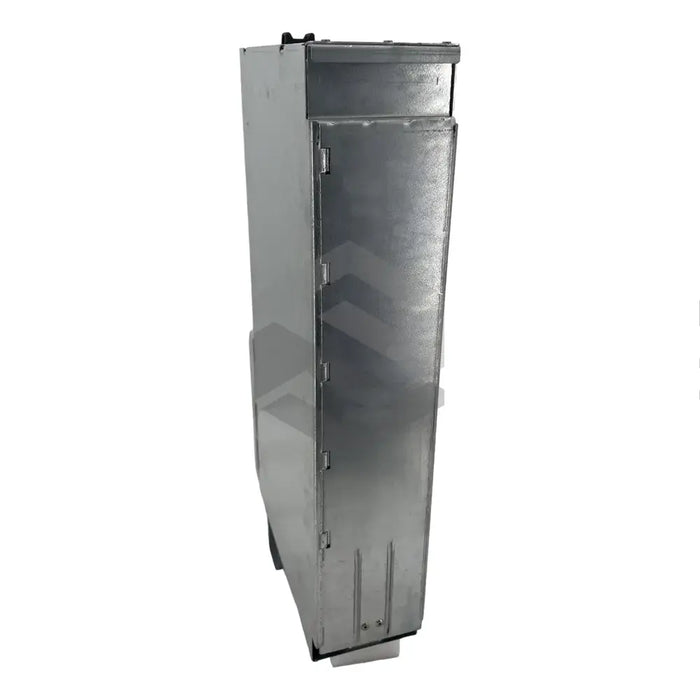

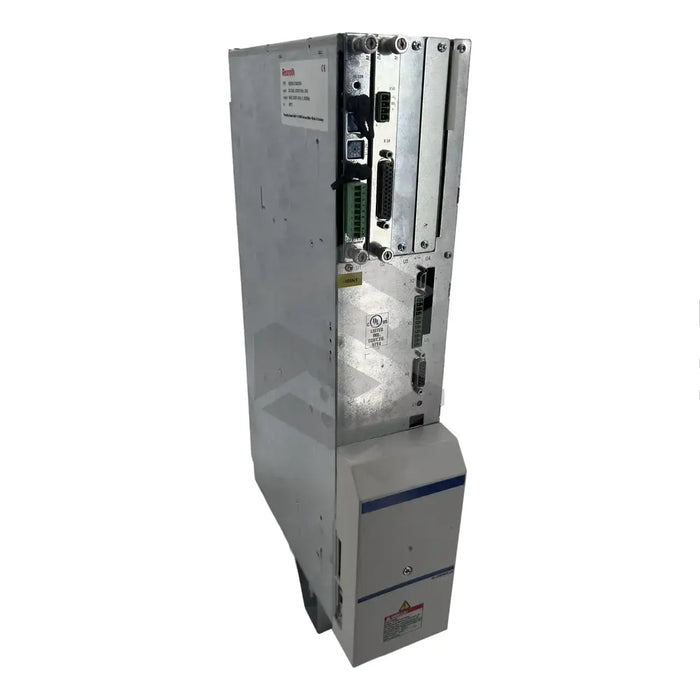

C image of HDS03.2-W100N-HS45-01-FW | Main (Front Left)

HDS03.2-W100N-HS45-01-FW

by Bosch Rexroth Indramat
$4,391.18 - $17,702.60
$4,391.18
$4,391.18 - $17,702.60
$4,391.18

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat HDS03.2-W100N-HS45-01-FW is a configured drive controller with a function ID code of 45 and version 01. It should be operated at a cooling temperature of 40°C and installed in a sealed control cabinet to prevent condensation. The cooling system should be maintained even after turning off the machine until ambient temperatures are achieved. Excessive proximity between the signal and power cables should be avoided. The drive controller, which weighs 11kg, should be vertically installed inside the cabinet with its motor connection at the base. The mounting rails should be alternately screwed in using M5 screws. The system should be grounded at the controller's base and its components align with DIN VDE 0160 specifications. Recommended operating conditions fall between +5°C and +45°C, and below altitudes of 1,000m. We offer delivery through DHL, FedEx, and other reliable partners.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Configured Drive Controller

Function ID Code

45

Version

01

Operating Temperature

40°C

Installation

In a well-sealed control cabinet

Cooling System Operation

Continues even after machine is off

Minimum Distance

100mm

Orientation

Vertical

Motor Connection

Established at the bottom

Ground Connection

Established at the bottom edge of the controller

Product Weight

11kg

Ambient Temperature Range

+5°C to +45°C

Installation Altitude

Up to 1,000m above sea level

Delivery Options

DHL, FedEx, etc.
