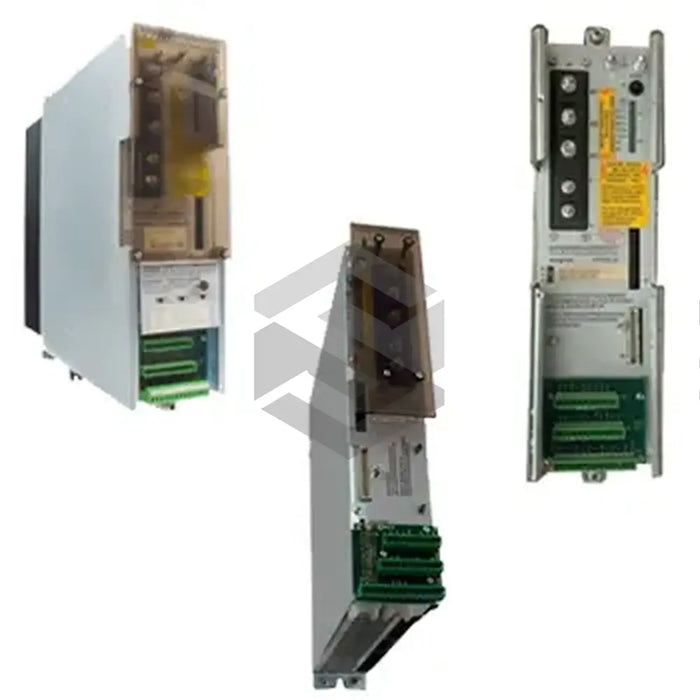

KDS 1.1-050-300-W1-220

Request a quote
The KDS 1.1-050-300-W1-220, developed by the trusted Bosch Rexroth Indramat, is a highly functional servo drive module aimed at enhancing control for automation processes. Given that efficient motion control is pivotal in modern industrial operations, this product delivers swift acceleration controls and torque reduction for fixed stop applications. Operating at a DC link voltage of 300V and with an internal power loss of only 75W, this 14.1 kg module showcases efficient energy use. Its signal processing consumes 950 mA at 24 Volts load voltage and 140 mA at 15 Volts measuring voltage. Its cutting-edge design incorporates natural convection cooling for heat dissipation and a cold running technology eliminating the need for external heat dissipation mechanisms or heat exchangers. Compliant with the international protection standard IP 10, it can be stored in temperatures ranging from -35ᵒC to 80ᵒC and function optimally up to 1000 m above sea level.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Drive Module
  • Model: KDS 1.1-050-300-W1-220
  • Primary Role: Motion Control for automation equipment
  • DC Link Voltage: 300 V
  • Power: 15 kW
  • Internal Power Loss: 75 W
  • Device Mass: 14.1 kg
  • Current Consumption for Signal Processing: 950 mA at 24 Volts load voltage
  • Measuring Voltage Current Consumption: 140 mA at 15 Volts
  • Cooling Method: Natural Convection
  • Peak Current Consumption: 50 A
  • Continuous Current Consumption: 35 A
  • Storage Temperature: -35 ᵒC to 80 ᵒC
  • Protection Standard: IP 10
  • Operation Ceiling: 1000 m above sea-level.
