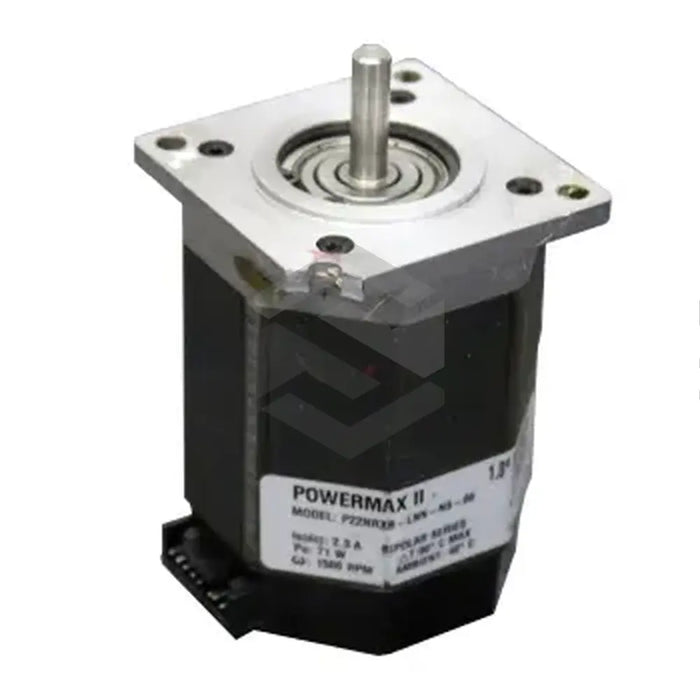

P22NRXD-LNN-NS-00

Original price $1,200.00 - Original price $1,200.00
Original price
$1,200.00
$1,200.00 - $1,200.00
Current price $1,200.00
In Stock, Ships 3 - 5 Days
Request a quote
Pacific Scientific’s P22NRXD-LNN-NS-00 is a versatile and high-performing hybrid step motor. Integral to the firm's motion control automation technologies, this motor is renowned for its flexible design and array of user options. The P22NRXD-LNN-NS-00 motor stands out due to its robust construction, impeccable performance and high torque output. Combining an effective thermal control function with exposed laminations aids efficient heat dissipation, extending motor life and minimizing downtime. It also incorporates a simple and efficient timing belt, which is virtually backlash-free, and has a high torque-to-inertia ratio for swift load movement. The motor's lightweight design is due to its low inertia mass, while other key technical features include its ±3% angular accuracy, 1.8° full step angle, -20° to 40° operating temperature, NEMA Class B insulation, and 100 Megohms @500V DC insulation resistance. Enhanced protective measures against dust and water are supported by its large bearings and an IP65 protective structure, complemented by ICE construction standards.
30 Day Warranty
Technical Specifications
  • Manufacturer: Pacific Scientific
  • Product Type: Hybrid Step Motor
  • Part of: Motion Control Automation Technologies
  • Motor Quality: High Performance
  • Rugged: Yes
  • Thermal Control: Polymer Encapsulated Stator
  • Heat Dissipation: Exposed Laminations
  • Timing Belt: Simple, Efficient, Backlash-free
  • Torque-to-Inertia Ratio: High
  • Acceleration: Bi-directional
  • Inertia Mass: Low
  • Angular Accuracy: ±3% of one full step, No Load, Non-cumulative
  • Steps Per Revolution: 200 Full Steps
  • Full Step Angle: 1.8°
  • Operating Temperature: -20° to 40°
  • Insulation: NEMA Class B with 130°C
  • Insulation Resistance: 100 Megohms @500V dc and 25°C
  • Manufacturing Process: Flexible
  • Holding Torque: 42-253 oz-in
  • Bearings Size: 30mm
  • Protective Structure: IP65 Standardized
  • Construction Standard: ICE (International Electro-technical Commission)
