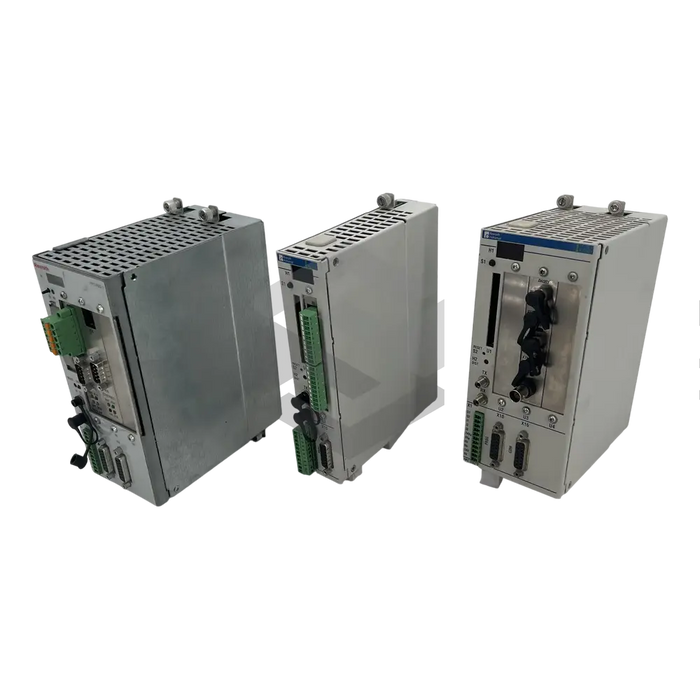

S image of PPC-P01.1A-N-A3-A3-A3-FW

PPC-P01.1A-N-A3-A3-A3-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The PPC-P01.1A-N-A3-A3-A3-FW, manufactured by the renowned Bosch Rexroth Indramat, is a top-of-the-line, PC-based multi-axis logic and motion control system. This standalone control, equipped with GMP 10 firmware, offers robust support for various digital drives, such as Diax 04, EcoDrive 03, and IndraDrive, making it a comprehensive solution for motion and logic control. Communication is facilitated via the Sercos interface, allowing seamless interaction between the controller and digital servo drives. Upon connection to a PC via a 32-bit PC bus, memory allocation is automatically carried out. The device includes a 7-segment, 1-digit display and a 32Mb compact flash memory card for data storage. The unit is also designed to interface with up to 40 drives and has optional encoder compatibility. Additionally, it features a 4-digit alphanumeric diagnostic display screen and utilizes the onboard NVRam and PFM01.1 flash memory card for storing crucial operation data. The PPC-P01.1A-N-A3-A3-A3-FW operates effectively within a relative humidity range of 5% to 78% and a maximum temperature of 45°C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Multi-axis Logic and Motion Control System

Model

PPC-P01.1A-N-A3-A3-A3-FW

Firmware

GMP 10

Supported Digital Drives

Diax 04, EcoDrive 03, and IndraDrive

Interface

Sercos

PC Connection

32-bit PC bus connection

Other Interfaces

Link Ring and PLS

Display

7-segment 1-digit display

Memory

32 Mb compact flash memory card, onboard NVRam non-volatile memory chip

Drive Support

Up to 40 drives via Sercos interface

Additional Features

Optional encoder interface card, 4-digit alphanumeric matrix display for diagnostics

Memory Usage

Stores VisualMotion user programs, PLS parameter lists, program variables, and I/O configuration, stores firmware

Operating Humidity

5% to 78%

Operating Temperature

Up to 45 ᵒC
