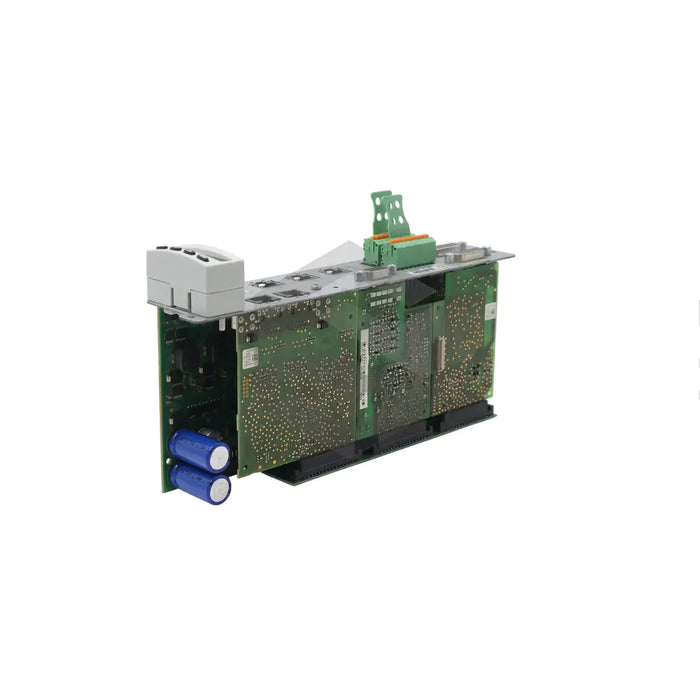

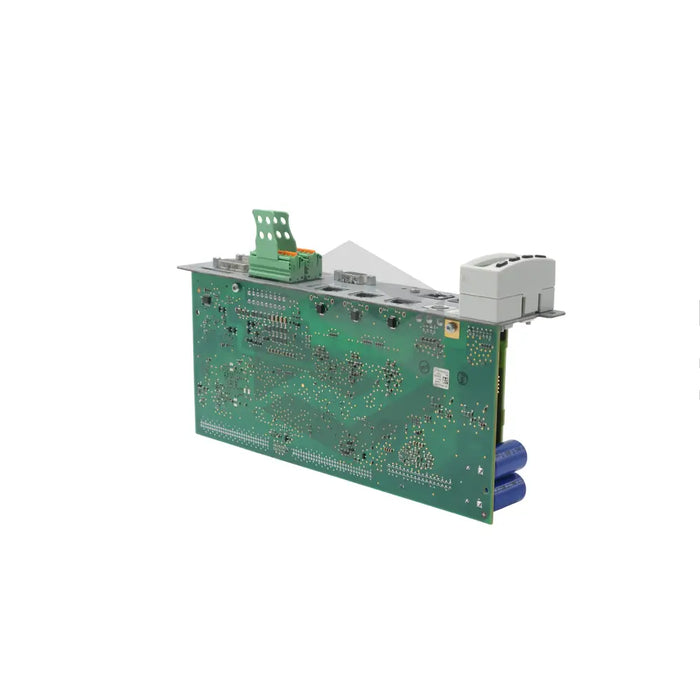

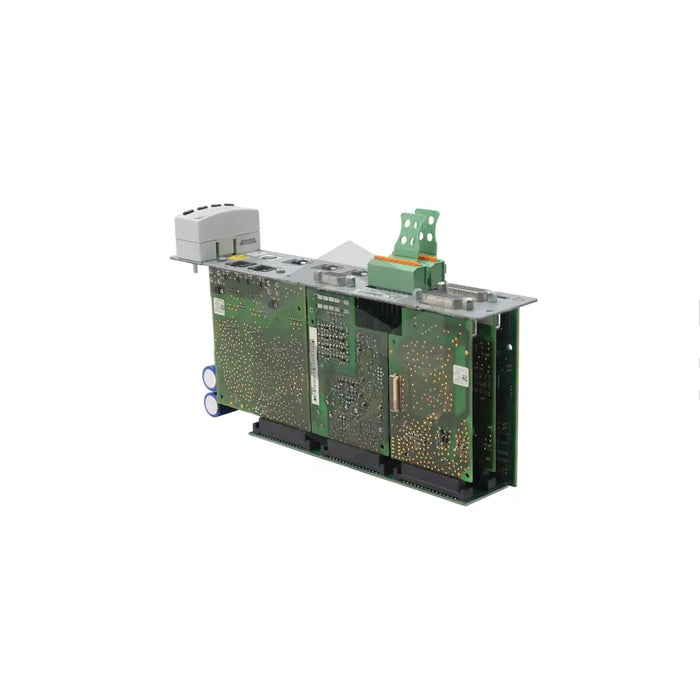

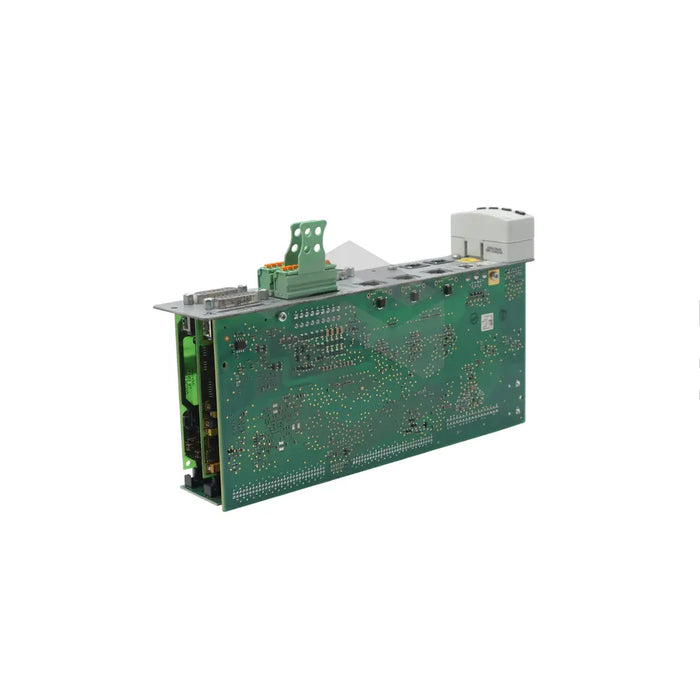

series image of CSH01.3C-ET-ENS-MA1-CCD-L2-S-NN-FW

CSH01.3C-ET-ENS-MA1-CCD-L2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSH01.3C-ET-ENS-MA1-CCD-L2-S-NN-FW is a compact drive controller model created by Bosch Rexroth, distinguished for its reliable and intelligent IndraDrive system components. The drive controller consists of a power section and a control section which houses key features such as a Multi-Ethernet interface for easy integration into different Ethernet field bus systems. Operational status is visually indicated through LEDs, facilitating easy fault detection. The control section supports various encoders with a 12V supply voltage, characterized by a D-sub type encoder interface with 15 poles. Offering an inrush current of 4A and a maximum pulse width of 100ms, the controller also features an Analog I/O Extension for enhanced analog channels. Adhering to IEEE 802.3 standards, the cross communication module encourages system interaction. With the aid of a standard control panel and safety technology such as Safe Torque Off, users can prevent unintentional drive restart, set the drive address, and establish position data reference with ease.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: CSH01.3C-ET-ENS-MA1-CCD-L2-S-NN-FW
  • Product Design: Compact CSH model
  • Interface: Multi-Ethernet
  • Field Bus Systems: SERCOS III, EtherCAT, ProfiNet
  • LED Indicators: Available
  • Standard Encoder Interface: D-sub type with 15 poles
  • Encoder Supply Voltage: 12V
  • Potential Encoders: 5V-TTL square-wave encoder with reference track, sin-cos encoder (1 Vpp) with reference track, sin-cos encoder (1 Vpp) with Hiperface, sin-cos encoder (1 Vpp) with EnDat 2.1
  • Typical Inrush Current: 4A
  • Maximum Pulse Width: 100ms
  • Analog I/O Extension: Available
  • Additional Analog Channels: 2 differential analog input channels (±10V), 2 analog output channels with 12-bit resolution
  • Control Section’s Cross Communication Module: Corresponds to the IEEE 802.3
  • Safety Technology: Safe Torque Off (STO)
  • Control Panel: Standard
