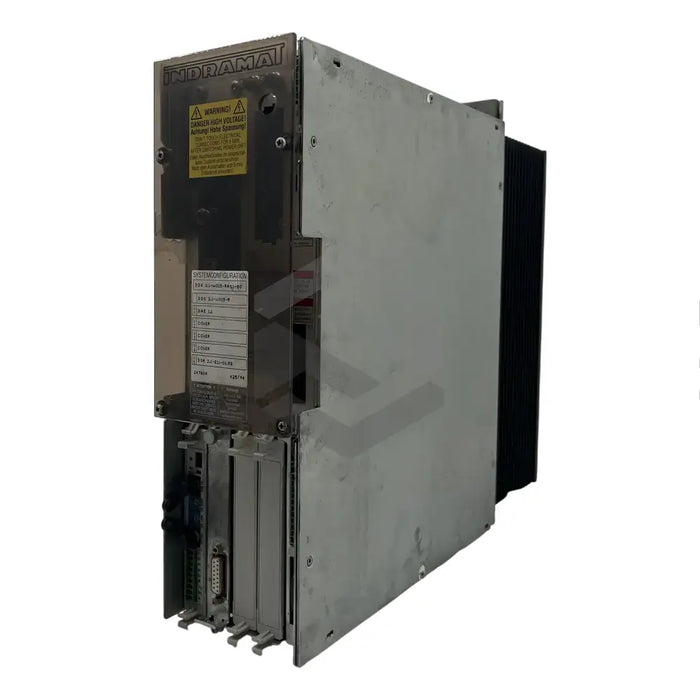

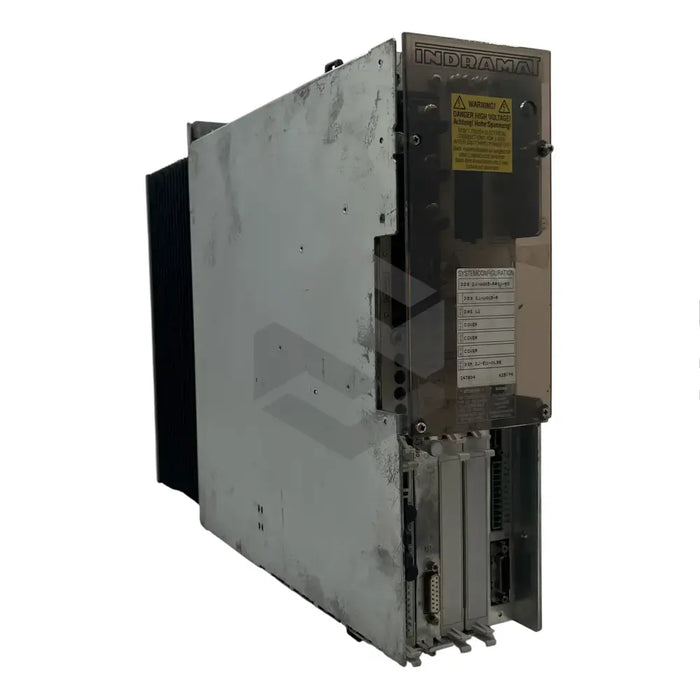

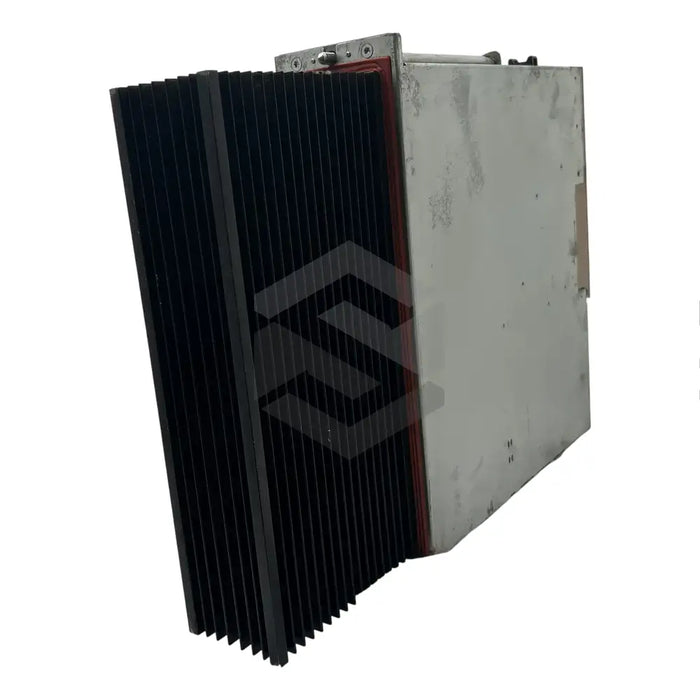

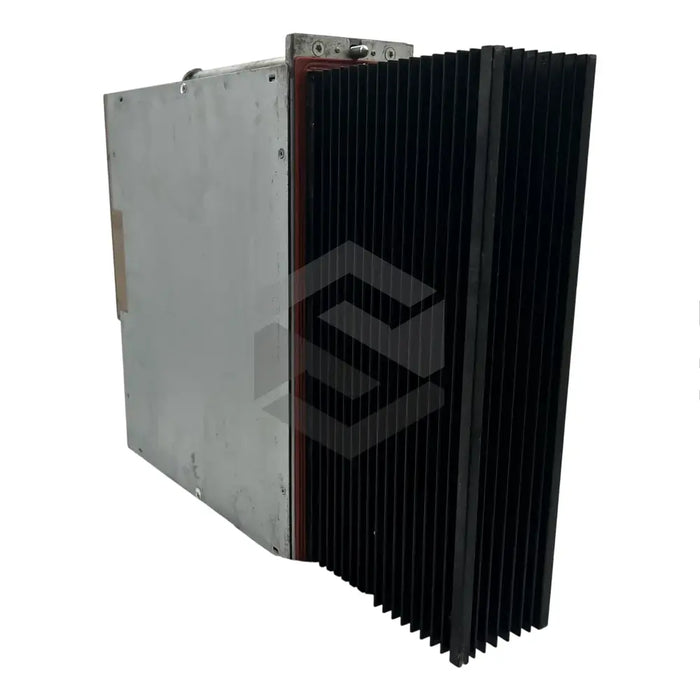

series image of DDS02.1-W050-RS03-03-FW

DDS02.1-W050-RS03-03-FW

by Bosch Rexroth Indramat
Request a quote
The DDS02.1-W050-RS03-03-FW drive controller, crafted by Bosch Rexroth Indramat, is designed for efficient operation, harnessing heat technology or internal airflow for cooling. It ensures safety by using a master switch to be de-energized during maintenance. The controller features empty slots in the basic unit, a bus voltage of 300 +/-15% VDC, and a maximum continuous current of 40A and peak current of 50A. Ideal storage conditions are dry, shock and dust-free environments, and plugin modules should be stored and transported securely. The controller uses a fault reset key, a status display for alerts, and an RS-232 interface for connection to computers or terminals. Two analog diagnostic outputs with an output voltage of 10VDC and 4mA load capacity are available. A starting lockout can be activated using a 20VDC to 30VDC voltage application. The controller uses a SERCOS interface, and is ideal for usage with robotics, printing, textile, packaging, handling equipment, and machine tools.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: DDS02.1-W050-RS03-03-FW
  • Cooling Method: Heat technology or air flow
  • Energy Deactivation: Master switch
  • Location of Hardware Configuration Plate: Bottom of unit
  • Location of Firmware Configuration Plate: Top of unit
  • Power Section Bus Voltage: 300 +/-15% VDC
  • Maximum Continuous Current: 40A
  • Maximum Peak Current: 50A
  • Storage Environment: Dry, free of shock and dust
  • Package Requirement for Plugin Modules: Special packaging
  • Fault Reset Key: Yes
  • Status Display: Yes
  • Connection Interface: RS-232
  • Diagnostic Outputs: Two analog
  • Output Voltage Rating: 10VDC
  • Current Load Capacity: 4mA
  • Starting Lockout Activation: 20VDC to 30VDC on AS+ and AS- input terminals
  • Usages: Robotics, printing, textile, packaging and handling machinery, machine tools
  • Communication Module: SERCOS interface
  • Plugin Module Requirement: Compatible controls through fiber optic cable
