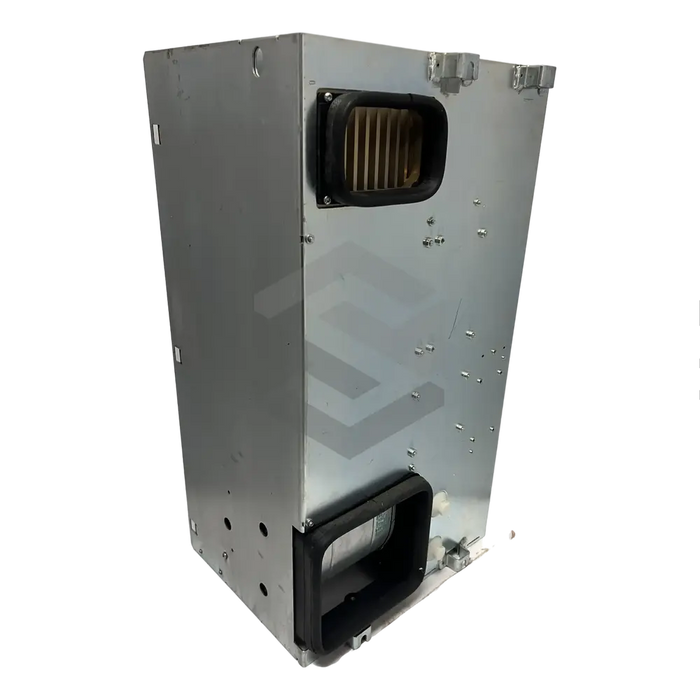

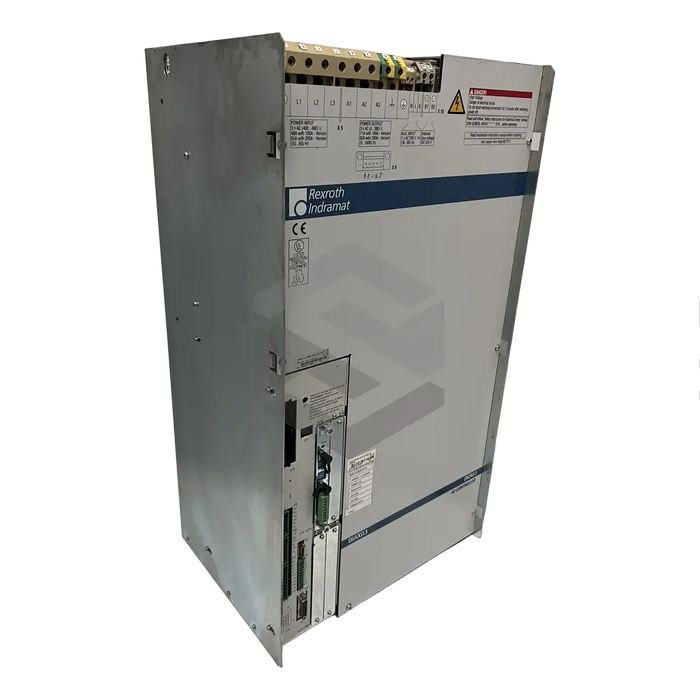

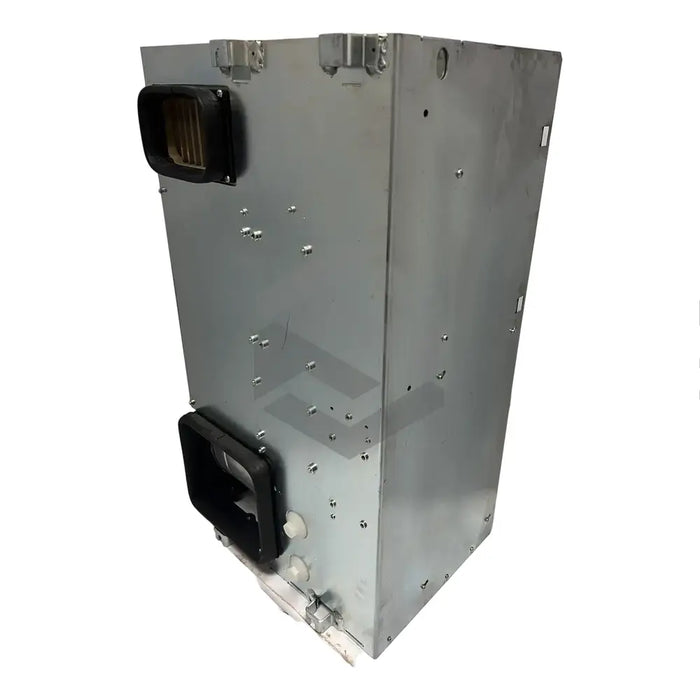

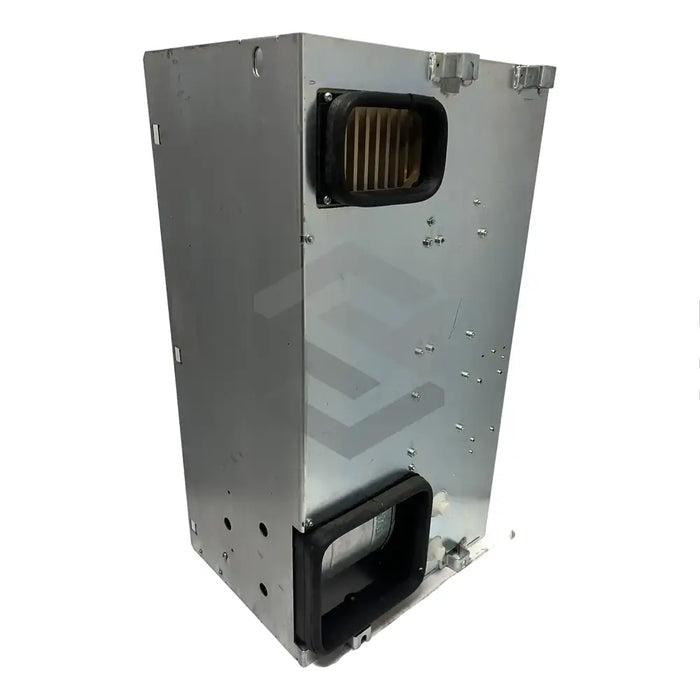

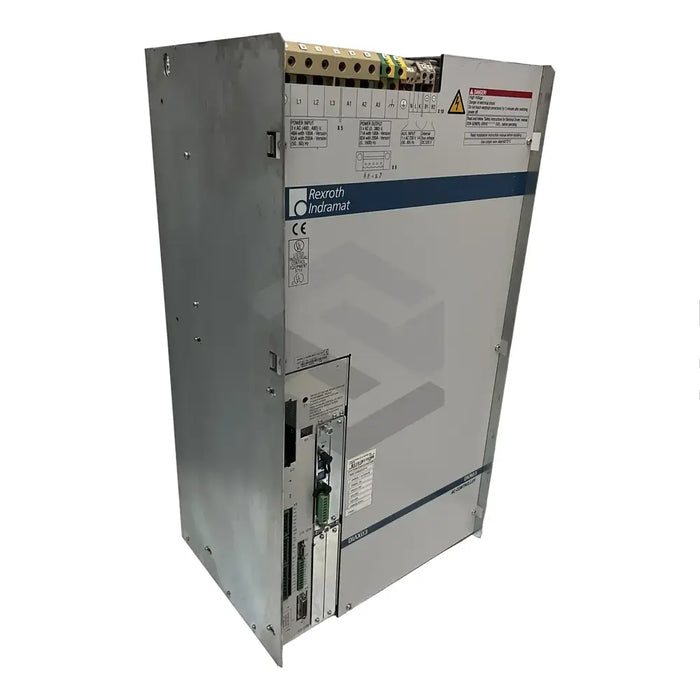

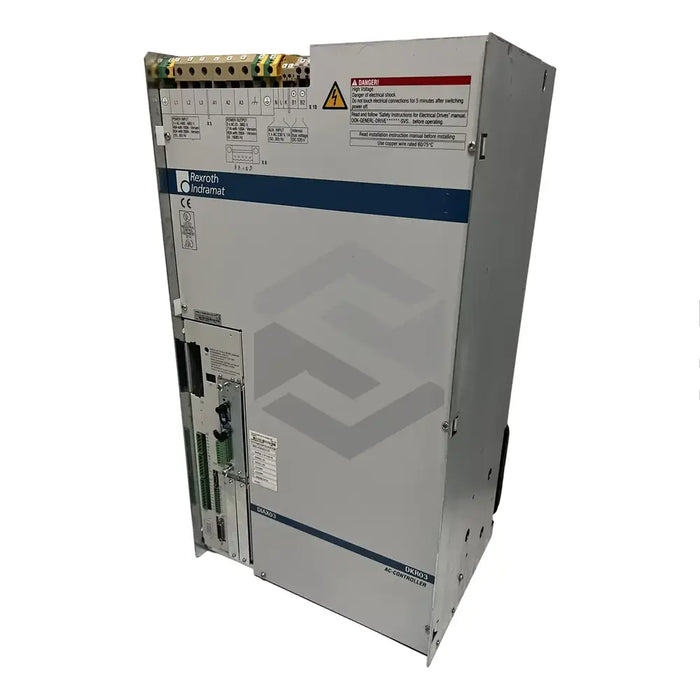

product Main (Front Left) image of DKR03.1-W100N-BE12-01-FW

DKR03.1-W100N-BE12-01-FW

by Bosch Rexroth Indramat
$9,703.55 - $9,703.55
$9,703.55
$9,703.55 - $9,703.55
$9,703.55
In Stock, Ships Today
The Bosch Rexroth Indramat DKR03.1-W100N-BE12-01-FW drive controller is designed for regulating and monitoring electrical motors' functionality. Embedded with a 100A rated current and an air blower for cooling, it is predominantly operated by trained technicians due to potential electrical hazards. The controller necessitates grounding of all inbuilt units prior to power activation, and a 5-minute disconnection from the main power supply when repairing parts above 50V. Electromagnetic and magnetic fields generated by this controller require cautious operation, particularly by individuals with hearing aids, pacemakers, or metal implants. The equipment features an integrated emergency shutdown device. It's powered by a three-phase AC (400V-480V) and it is primarily programmed for managing ADF main spindle AC motors, 1MB frameless motors, and LSF linear spindle motors with a power output range of 10-93kW. The controller has customization abilities with different available ratings and a configurable basic unit with plug-in provisions for interface command cards. Additionally, the controller requires separately ordered FWA-DIAX03 firmware as a cybersecurity measure.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model: DKR03.1-W100N-BE12-01-FW
  • Current Rating: 100A
  • Cooling System: Built-in air blower
  • Installation Requirement: Trained electrical technicians
  • Safety Precaution: Ground all electrical units
  • Safety Precaution: Wait for 5 minutes before working on equipment
  • Limitation: Not suitable for personnel with hearing aids, pacemakers or metal implants
  • Emergency Feature: Integrated emergency shutdown stop device
  • Power Supply Requirement: Three phase AC (400V-480V)
  • Motor Compatibility: ADF main spindle AC motors, 1MB frameless motors, LSF linear spindle motors
  • Motor Power Output: 10 to 93kW (small scale ac motors)
  • Interface Command Cards: U1 to U5
  • Firmware Requirement: FWA-DIAX03 (ordered separately)
  • Customization: Available based on end-user needs
  • Communication: Closed-loop command and feedback communication.
