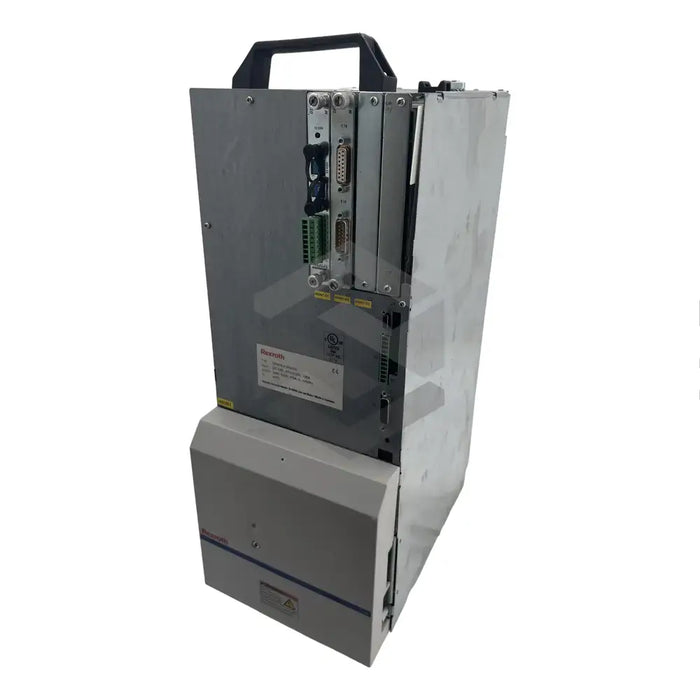

C image of HDS05.2-W300N-HS09-01-FW | Main (Front Left)

HDS05.2-W300N-HS09-01-FW

by Bosch Rexroth Indramat
$12,010.50 - $12,010.50
$12,010.50
$12,010.50 - $12,010.50
$12,010.50

In Stock, Ships 1 - 3 Days

The HDS05.2-W300N-HS09-01-FW, manufactured by Bosch Rexroth Indramat, is an efficient drive controller in the HDS05.2 series. Designed for robotics, handling machines, textile, packaging machines, and machine tools applications, it can operate as a main or servo drive controller. This model specifically supports activation for two motors and is configured to work seamlessly with 2AD, 1MB, MKD, and MHD motors as well as HVR or HVE supply modules. The advanced design enables the HDS05.2-W300N-HS09-01-FW to intelligently monitor and control electric motor operations. It utilises an air-cooling mechanism facilitated by a built-in blower. The SERCOS interface and a DSS02.1M plug-in module permit seamless command communication. This model's current ratings are 300A peak and rated. Rated for a temperature range of +5C - +45C, it can handle up to +55C with derated data. Designed to be installed in a control cabinet, it measures 25kg in weight and allows single or multiple-axis drive control configurations.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

HDS05.2-W300N-HS09-01-FW

Function

Main/Servo Drive Controller

Applications

Robotics, Handling Machines, Textile, Packaging Machine, Machine Tools

Integration

Synchronizes with HVR or HVE supply modules

Configuration

Fixed, suitable for activating two (2) motors

Accessories

Suitable for use with the manufacturer specified accessories

Cooling

Air-Cooling with built-in blower

Communication

SERCOS interface with DSS02.1M plug-in module

Rated Current/Peak Current

300 Amperes

Weight

25 kilograms

Switching Frequencies

At 4 kHz: 175 Amperes, At 8 kHz: 100 Amperes

Power Loss at Continuous Current Rating

1.2 kW

Environmental Temperature with Rated Data

+5 ≤ oC ≤ +45

Max Environmental Temperature with Derated Data

+55 oC

Transport and Storage Temperature

-30 ≤ oC ≤ +85

Installation Requirement

In a closed housing or control cabinet, as per EN 50175/1988
