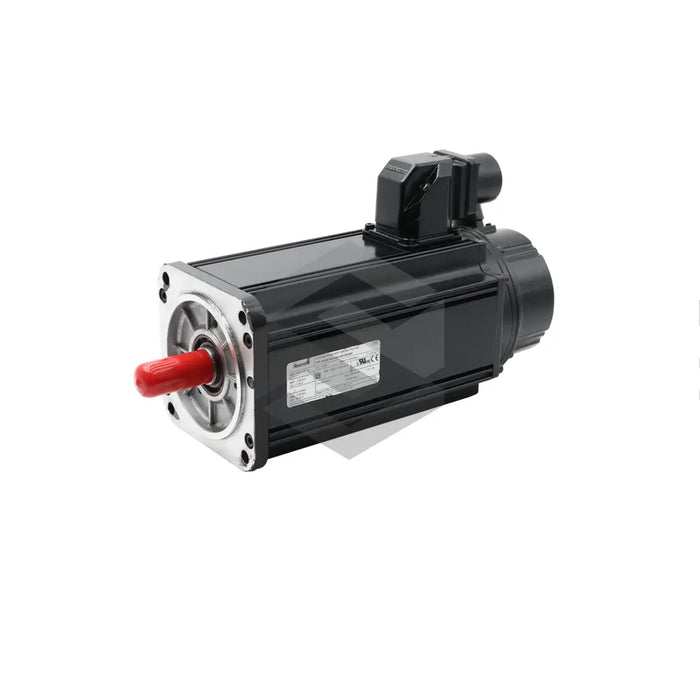

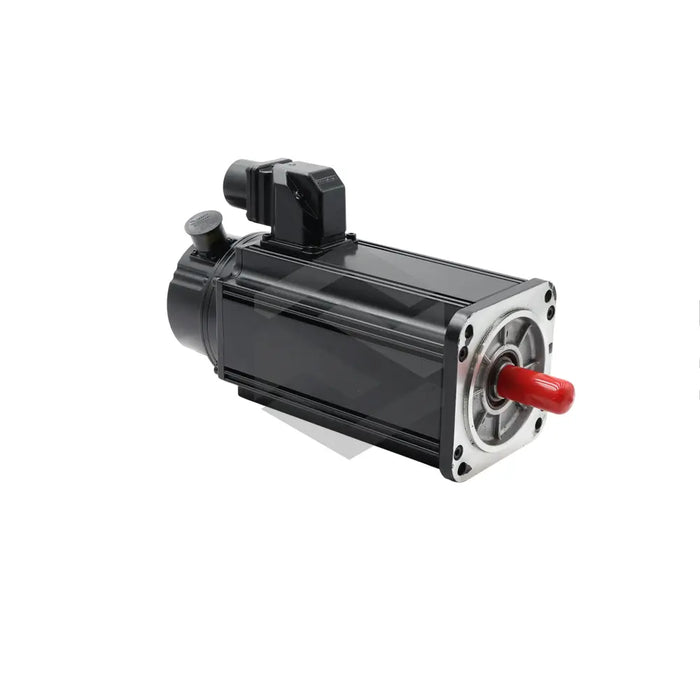

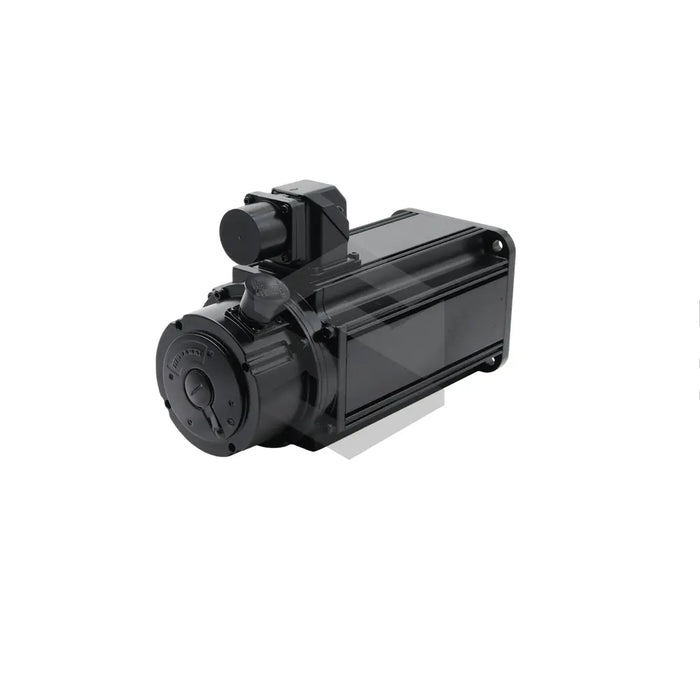

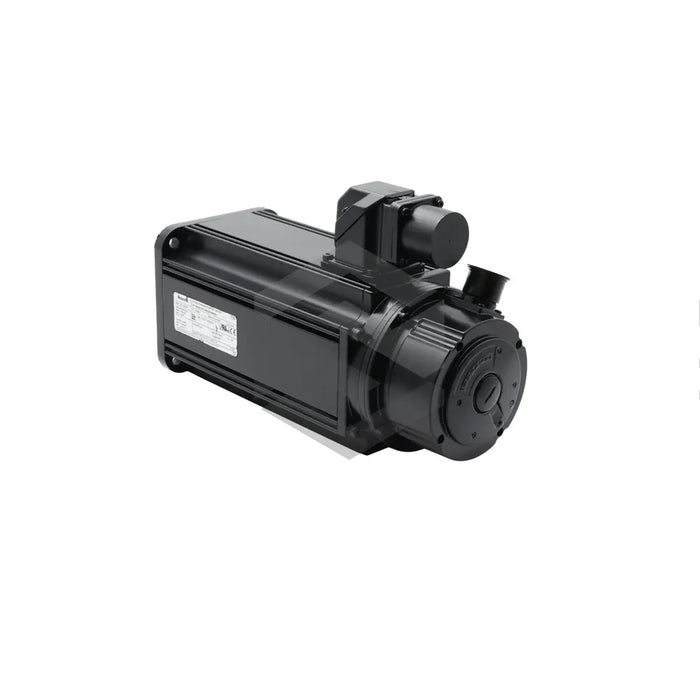

MDD071B-N-040-N2S-095PA1
Bosch Rexroth Indramat's MDD071B-N-040-N2S-095PA1 is an AC servo motor designed for automation applications. With a torque constant of 0.40 Nm/A and winding inductivity of 4.1 mH, it operates within temperatures of 0-45 degrees Celsius and altitudes up to 1000 meters. The 8.8kg motor, with a moment of inertia of 8.9 x 10-4 kgm2 and thermal time constant of 45 minutes, offers a nominal speed of 4000 RPM, generating 4.4 Nm of continuous torque and a continuous current of 11 A. Its brushless construction, lubricated bearings, electronic commutation and permanent magnets promise longevity and efficient performance. There's a 0.3kg holding brake operating on 24 volts that boasts inertia of 0.38 x 10-4 kgm2. To reduce potential disruptions, install strain reliefs at the motor power connection on the A-side. An insulation level of F and a keyway shaft further enhance its functioning. Please note suitable temperatures for transportation range from -20 to +80 degrees Celsius.
30 Day Warranty
Technical Specifications
