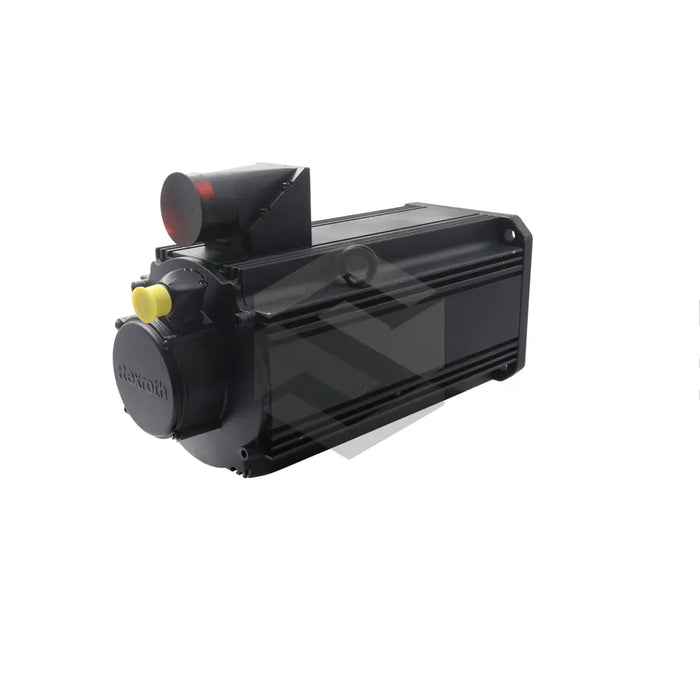

R911312292
The Bosch Rexroth Indramat R911312292 (MSK100C-0200-NN-M2-AG0-RNNN) is a state-of-the-art MSK servo motor, celebrated for its expansive power spectrum and high torque density. Designed with preciseness, this compact unit boasts maximum torques of up to 495 Nm. The motor is adaptable for different applications through singleturn and multiturn encoder systems, making it an ideal choice for a myriad of machinery, from printing machines to robotics. With a peak speed of 3500 RPM, the motor stands rigid with a torque of 38 Nm and recoil that reaches a maximum torque of 148 Nm. Current statistics exhibit a standstill and maximum current of 17.7 Amps and 78.7 Amps, respectively, while the motor possess a moment of inertia of 0.0273 kg m2.
The R911312292 (MSK100C-0200-NN-M2-AG0-RNNN) is flange-mounted for convenience, offering a flange size of 192 mm and mounting hole diameter of 14 mm. The motor features a plain shaft with a diameter of 32 mm, and overall dimensions of 434 mm and 262 mm in length and height respectively. The motor is powered via a servo controller and includes a power connector sited on side A. It accommodates a multiturn encoder with 2048 signal periods but does not include an optional holding brake. Lastly, the housing design endorses enhanced concentricity and run out, cooling naturally but also supports surface cooling with a fan. The motor is finished with a black coating, offering IP65 protection.
