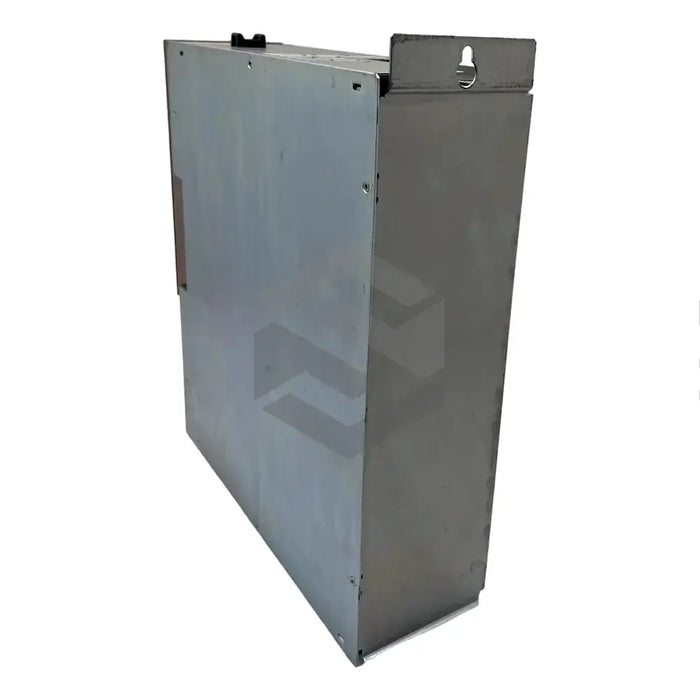

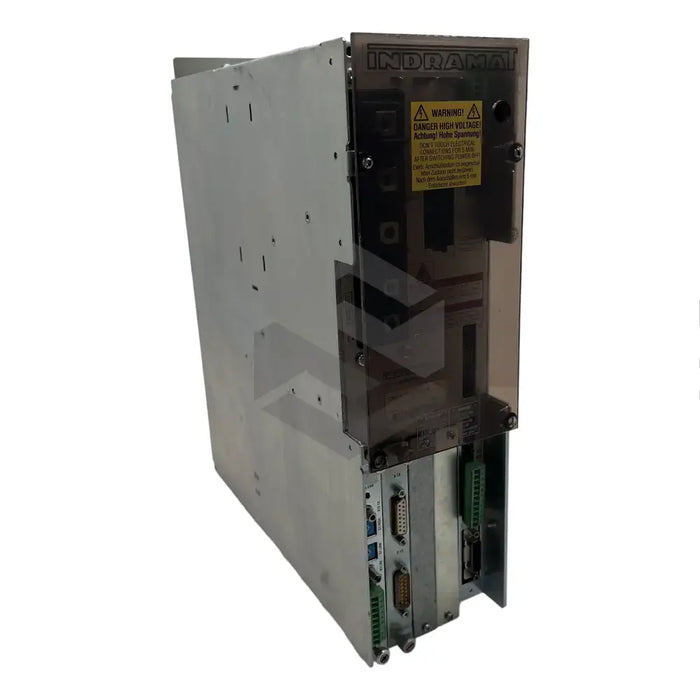

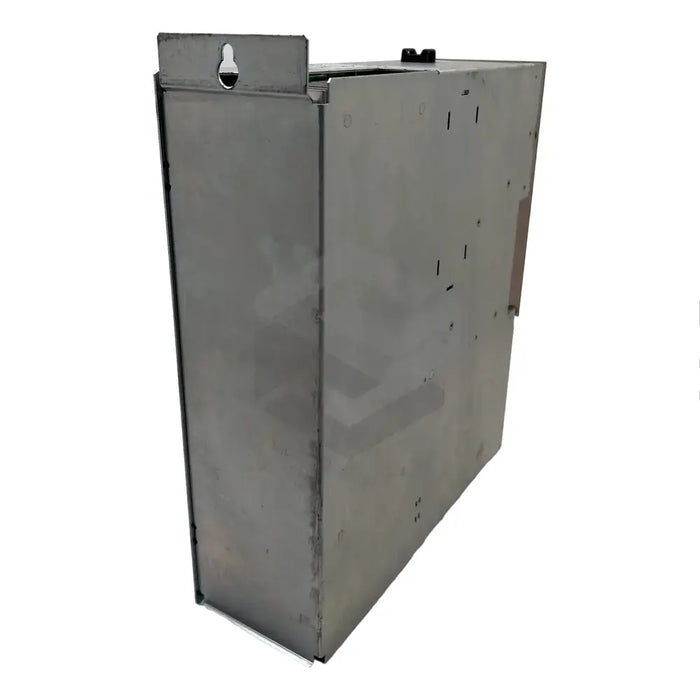

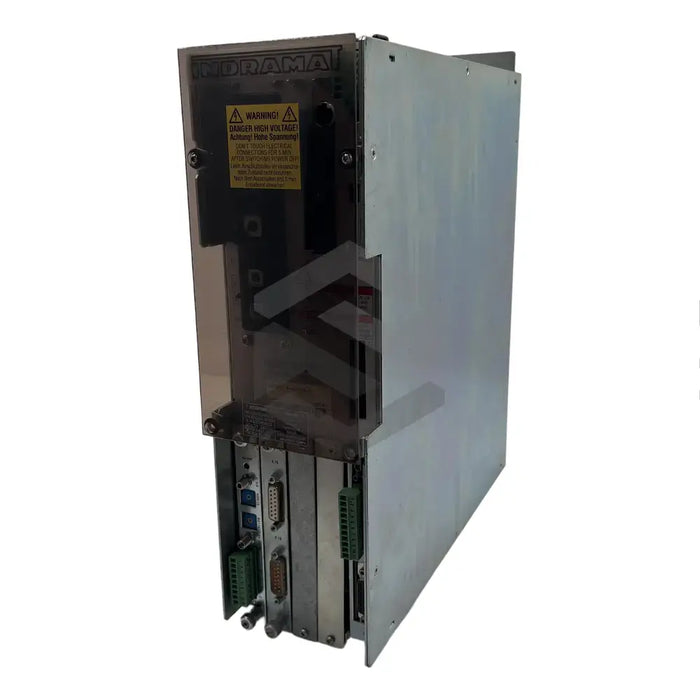

series image of DDS02.2-W100-BE09-01-FW

DDS02.2-W100-BE09-01-FW

by Bosch Rexroth Indramat
Request a quote
The DDS02.2-W100-BE09-01-FW, a product of Bosch Rexroth Indramat, is a DDS drive controller designed to operate with AC motors including but not limited to MDD, MKD, LAR, LAF, LSF among others. These combinations serve as rapid-response drives in machine tools, textile machines, and robotics to name a few. The drive controller is part of a DDS drive system and when paired with an AC servo and main drives, forms a compact package powered by single supply unit. It comprises a basic unit, plug-in module, software module, and firmware with a peak current capacity of 100A. The DDS02.2-W100-BE09-01-FW utilizes heat technology for cooling, enables digital servo feedback or resolver feedback, and features a SERCOS interface for communication. It can withstand maximum ambient temperature of 40°C, relative humidity of 95%, and should be installed no higher than 1000m above average sea level.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model: DDS02.2-W100-BE09-01-FW
  • Design: Modular
  • Components: Basic unit, Plug-in module, Software module, Firmware
  • Peak Current: 100A
  • Connection Voltage: Regulated DC 24V
  • Cooling Method: Heat Technology
  • Extra Feature: Terminals for starting lockout
  • Feedback Options: Digital Servo Feedback or Resolver Feedback
  • Communication Module: SERCOS interface
  • Installation Height: Maximum 1000m above sea level
  • Operating Temperature: Maximum 40°C
  • Relative Humidity: 95%
  • Compatible Motors: MDD, MKD, LAR, LAF, LSF, 2AD, ADF, 1MB, MBW motors.
