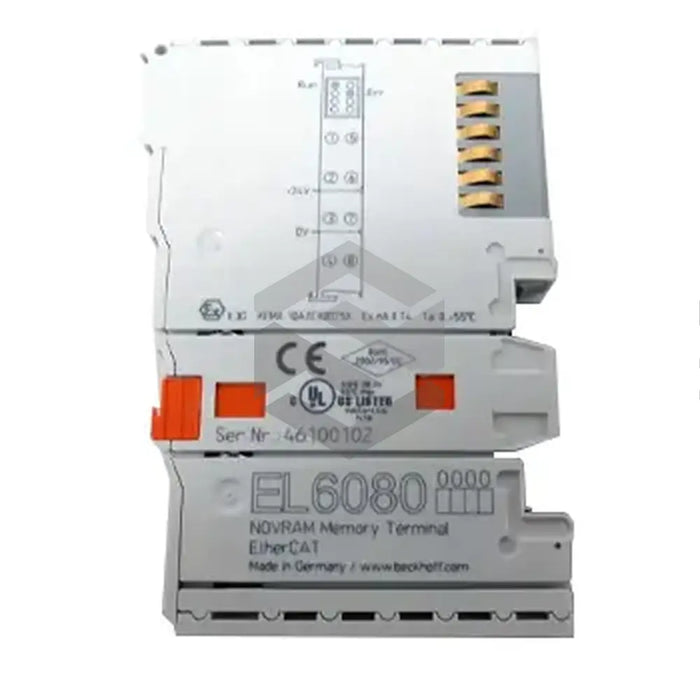

P image of EL6080

EL6080

by Beckhoff
$815.98 - $937.72
$815.98
$815.98 - $937.72
$815.98
The Beckhoff manufactured EL6080 is an EtherCAT memory terminal equipped with a total memory of 128 kbyte and a maximum usable memory of 1280 bytes for both cyclic and acyclic access. The terminal is configured through the TwinCAT system manager with supply voltage provided via E-bus. The EL6080 is designed for operation in temperatures of -25 to 60 degrees Celsius, in humid conditions not exceeding 95% without condensation. The terminal is certified by CE, ATEX and cUlus, meeting EMC immunity requirements. It is protected to IP 20 class standards, requiring installation in a control cabinet with a minimum IP 54 degree of protection. The EL6080 uses cyclic and acyclic processes for memory access and is intended for use by trained control, automation and drive engineering professionals. It's designed for safe operation, requiring it to be in a powered down state during installation and maintenance. Data can be entered manually in either online or offline mode.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Beckhoff

Model

EL6080

Category

EtherCAT memory terminal

Total Memory

128 kbyte

Maximum usable memory (in cyclic access)

1280 bytes

Maximum usable memory (in acyclic access)

1280 bytes

Configuration

TwinCAT system manager

Supply voltage

E-bus

Operating temperature

-25 to 60 degrees Celsius

Storage temperature

-40 to 85 degrees Celsius

Maximum humidity during operations

less than 95%

Approvals

CE, ATEX, cUlus

EMC immunity

Yes

Class protection

IP 20

Recommended mounting method

DIN rail (horizontal positioning)

Connection orientation

Forwards

Cooling Method

Ventilation from below

Functions

Reading machine data, parameters and recipes

Power back up

Integrated buffer

Acyclic memory access

Yes

Cyclic memory access

Yes

Required expertise for installation

Trained in control, automation, and drive engineering

Prior to commissioning

Ensure proper mounting and configuration in TwinCAT runtime environment

Method to enter configuration data

Scan and editor functions in online and offline modes.
