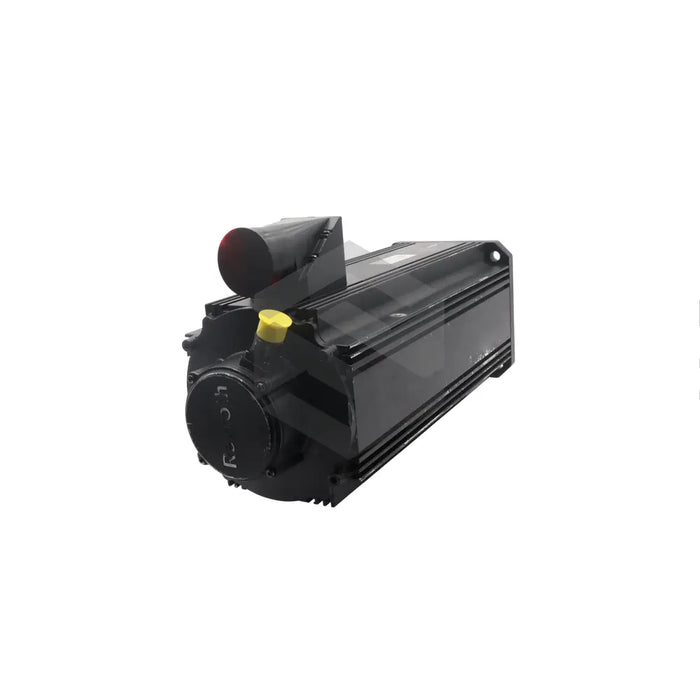

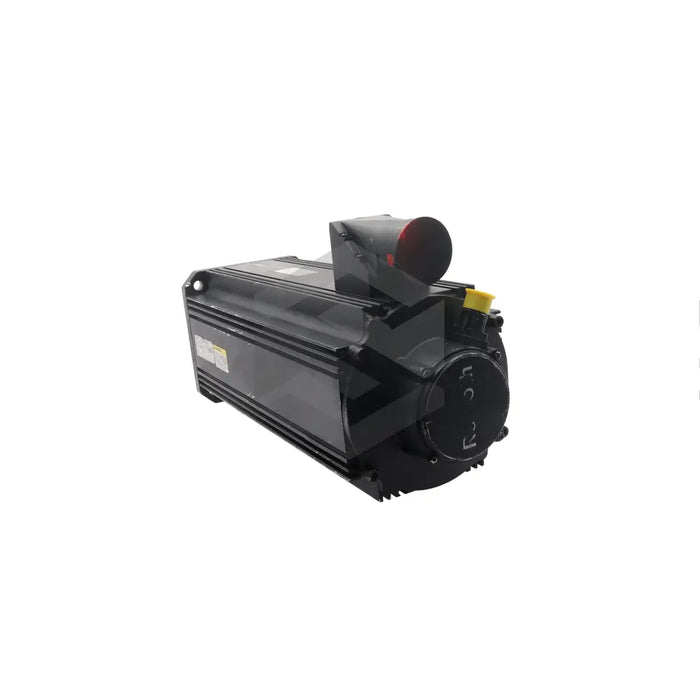

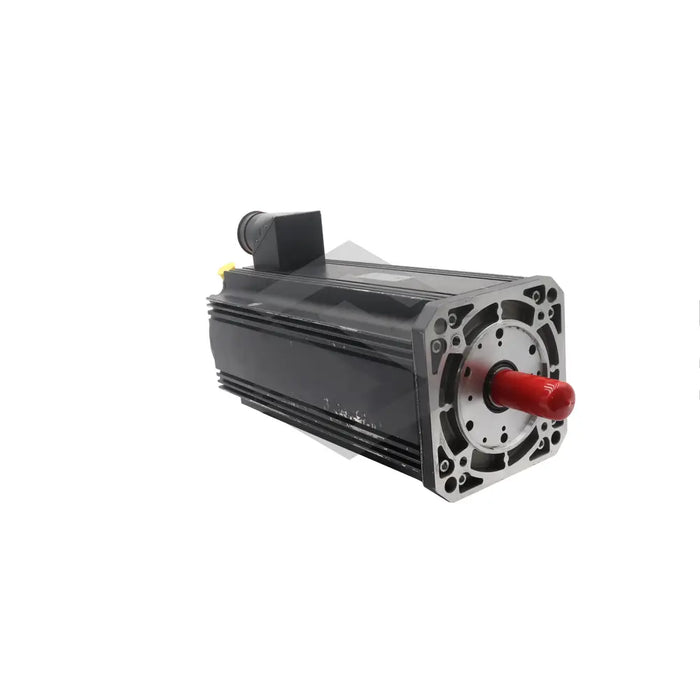

MSK100D-0300-NN-M2-BP2-RNNN
The MSK100D-0300-NN-M2-BP2-RNNN is a high-quality synchronous motor created by Bosch Rexroth Indramat, noteworthy for manufacturing prominent industrial machinery components. This motor model is equipped with an EnDat2.1 optical encoder, providing precise position tracking, and an output shaft with keyways for effective torque transmission. With a weight of 56 kilograms and operating at under 75 decibels, it can efficiently generate up to 57 Nm of continuous torque at 100K. To ensure superior performance, a drive controller and secure installation are necessary. The motor can achieve a maximum speed of 3000 RPM with a constant torque of 2.55 Nm/A. It features an insulation class rating of 155 and meets IP65 standards for dust and liquid resistance. The included holding brake, weighing 3.5 kilograms offers a holding torque of 70 Nm, and the device incorporates a temperature sensor for enhanced power ratings. It must be diligently utilized within a temperature range of 0 and +40 degrees Celsius.
