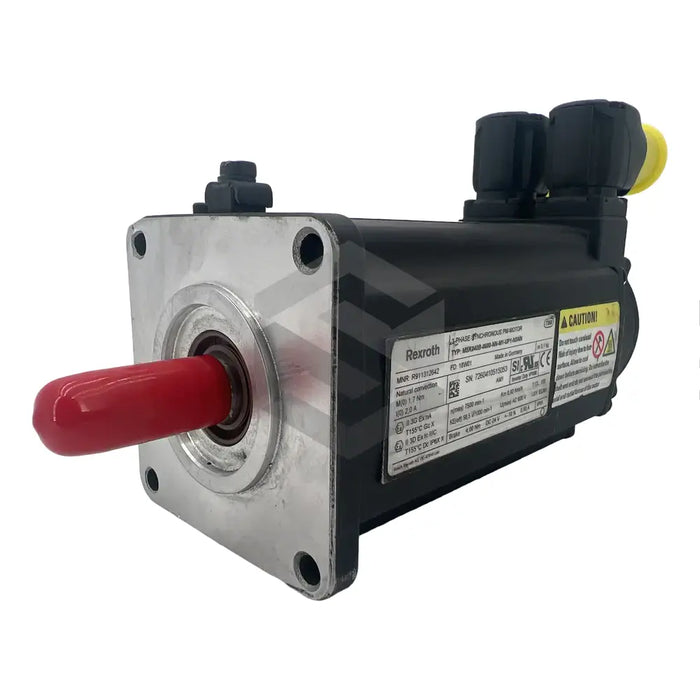

product Main (Front Left) image of MSK040B-0600-NN-M1-UP1-NSNN

MSK040B-0600-NN-M1-UP1-NSNN

by Bosch Rexroth Indramat
$3,000.00 - $3,000.00
$3,000.00
$3,000.00 - $3,000.00
$3,000.00
In Stock, Ships Today
The MSK040B-0600-NN-M1-UP1-NSNN is a state-of-the-art synchronous servo motor designed by market leader Bosch Rexroth Indramat. This high-performance motor features an optical encoder, a holding brake, and a multiturn hyperface with 128 increments for precise motor output shaft position detection. Powered by AC 400 to 480 V, it offers a continuous torque of 1.7 Nm and a continuous current of 2.0 A at a 60K housing temperature rise, with a maximum torque output of 5.1 Nm at 8.0 A. The motor's robust construction adheres to IP65 protection standards, ensuring resilience against dust and water, and promises a maximum speed of 750 rpm. It operates optimally at a sound level below 75 dB and within a temperature range of 0°C to +40°C. Finally, the motor incorporates a plain shaft with a sealing ring and a 24VDC holding brake.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MSK040B-0600-NN-M1-UP1-NSNN
  • Product Type: Synchronous Servo Motor
  • Series: MSK
  • Holding Brake: Yes
  • Encoder Type: Optical Encoder
  • Increments: 128
  • Rated Input Power: AC 400 to 480 V
  • Shaft Type: Plain Shaft
  • Shaft Sealing Ring: Yes
  • Holding Brake Voltage: 24 VDC
  • Holding Torque: 4 Nm
  • Continuous Torque at 60K (increase in Housing Temperature): 1.7 Nm
  • Continuous Current: 2.0 A
  • Maximum Torque: 5.1 Nm
  • Maximum Current: 8.0 A
  • Winding Resistance: 8.40 W at 20°C
  • Pole Pairs: 4
  • Thermal Time Constant: 13.0 sec
  • Maximum Speed: 750 rpm
  • Sound Level: Below 75 dB
  • Operating Temperature: 0°C to +40°C
  • Motor Housing Protection: IP65
  • Insulation Class: 155 according to DIN EN 60034-1
  • Manufacturing Tolerance: +5%
  • Shipping: Worldwide
  • After Sales Services: Worldwide
